DualGard™ Bracket -
1" OD Tube (DualPipe™ alternative) -
1" OD Splice -
DualCollar™ & DualGard™ Endcap Kit -
DualClip™ II -
DualClip™ III -
S-5-E™ Mini Seam Clamp -
S-5-H™ Mini Seam Clamp -
S-5-H90™ Mini Seam Clamp -
S-5-N™ Mini Seam Clamp -
S-5-N™ 1.5 Mini Seam Clamp -
S-5-NH™ 1.5 Mini Seam Clamp -
S-5-S™ Mini Seam Clamp -
S-5-T™ Mini Seam Clamp -
S-5-U™ Mini Seam Clamp -
S-5-V™ Mini Seam Clamp -
S-5-Z™ Mini Seam Clamp -
CorruBracket™ with M8 Bolt
System Components
Product
Price
Quantity
Add to cart
DualGard™ 2-pipe snow retention bracket.
$12.37
Sold out

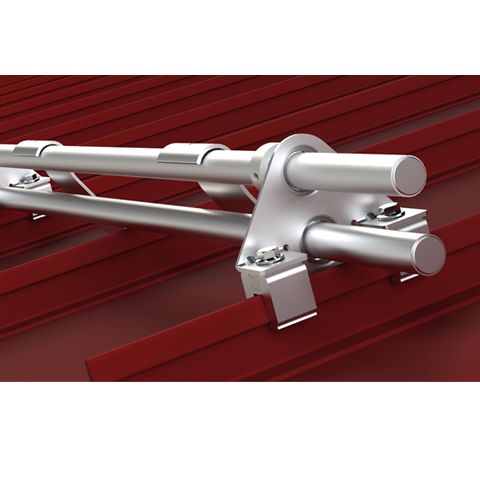

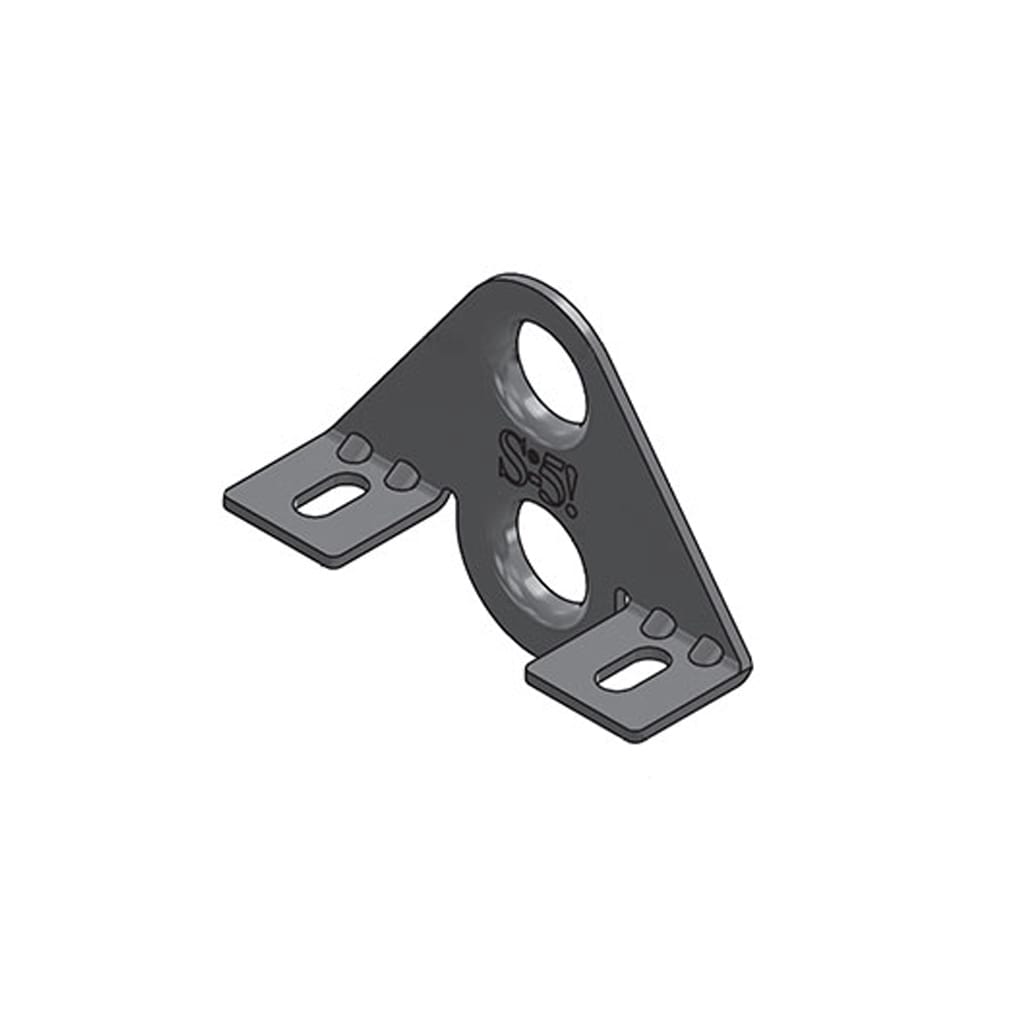

DualGard™ Bracket
DualGard™ 2-pipe snow retention bracket.
Description
DualGard is a two-pipe, 1” diameter (25 mm), aluminum snow bar system that can be used on almost any standing seam metal roof or corrugated metal roof profile.
For standing seam metal roofs, DualGard utilizes two S-5! Mini clamps per bracket to provide a broad attachment base for extra holding strength.
For corrugated metal roofs, DualGard uses the CorruBracket™, providing versatile mounting options.
- One-inch diameter, two-pipe system
- DualGard bracket design provides lateral stability
- Two anchor points per DualGard bracket, for added strength
- Can be used with CorruBracket
Required components, sold separately:
- DualPipe™ (1" tube) with DualGard Splice
- DualClip™ (available in two sizes)
- S-5! Mini clamps (2 per bracket) or CorruBracket™
Resources
- Brochure
- Installation instructions
DualPipe™ alternative for DualGard™.
$14.75
Sold out
1" OD Tube (DualPipe™ alternative)
DualPipe™ alternative for DualGard™.
Compatible with our 1" OD Tube
$4.50
Sold out
1" OD Splice
Compatible with our 1" OD Tube
Description
The splice for the 1" OD tube is used to connect the pipes creating an unbroken run of pipe. Splices should be staggered so that the connections on the top pipes do not align with the connections on the bottom pipes.
Clean aesthetic that keeps moisture, debris, and pests out.
$56.37
Sold out
DualCollar™ & DualGard™ Endcap Kit
Clean aesthetic that keeps moisture, debris, and pests out.
Description
Fits a 1" pipe.
DualCollar™
Installed on DualPipe at the ends of an assembly, locking DualPipe in place to prevent lateral shifting.
DualGard Endcaps
End caps keep rain, dirt, and debris out of the pipes.
Each kit comes with four (4) DualCollar™ and four (4) DualGard Endcaps.
Snow clip for DualGard™ and VersaGard™ up to 1.5" high.
$11.55
Sold out
DualClip™ II
Snow clip for DualGard™ and VersaGard™ up to 1.5" high.
Snow clip for DualGard™ and VersaGard™ above 1.5" high.
$15.27
Sold out
DualClip™ III
Snow clip for DualGard™ and VersaGard™ above 1.5" high.
S-5!® Clamps for Standing Seam Metal Roofs
Product
Price
Quantity
Add to cart

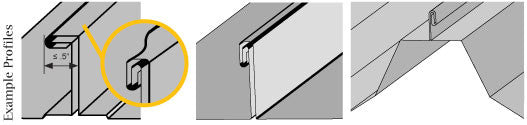

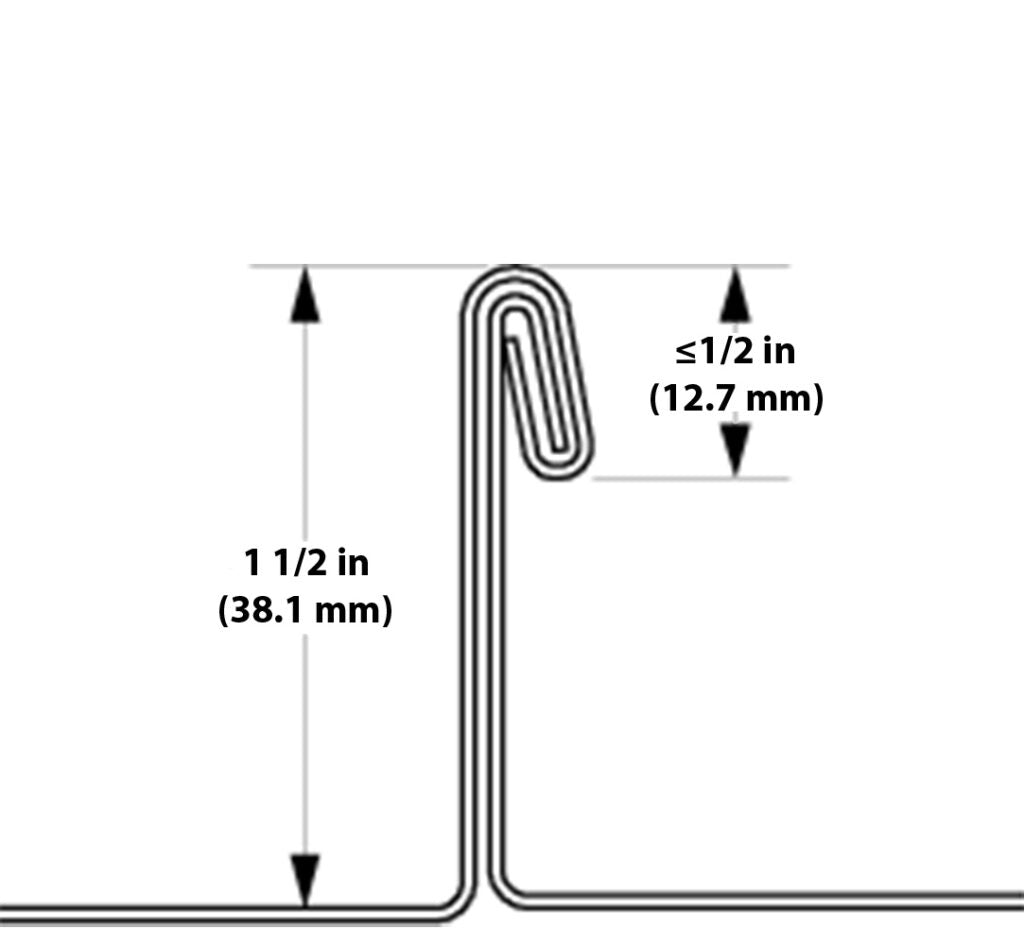

For traditional 1" and 1.5" tall double-folded seams.
$8.90
Sold out

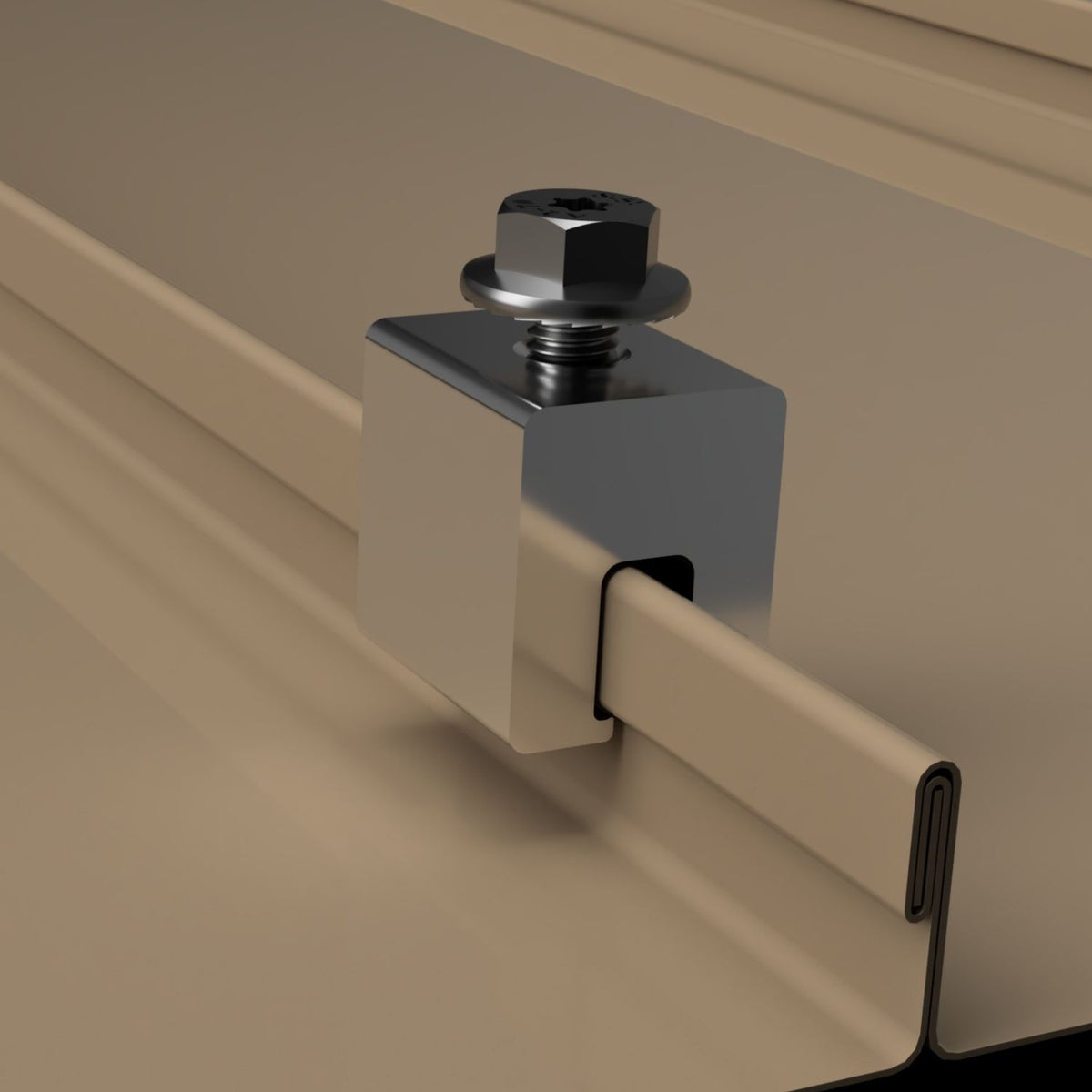

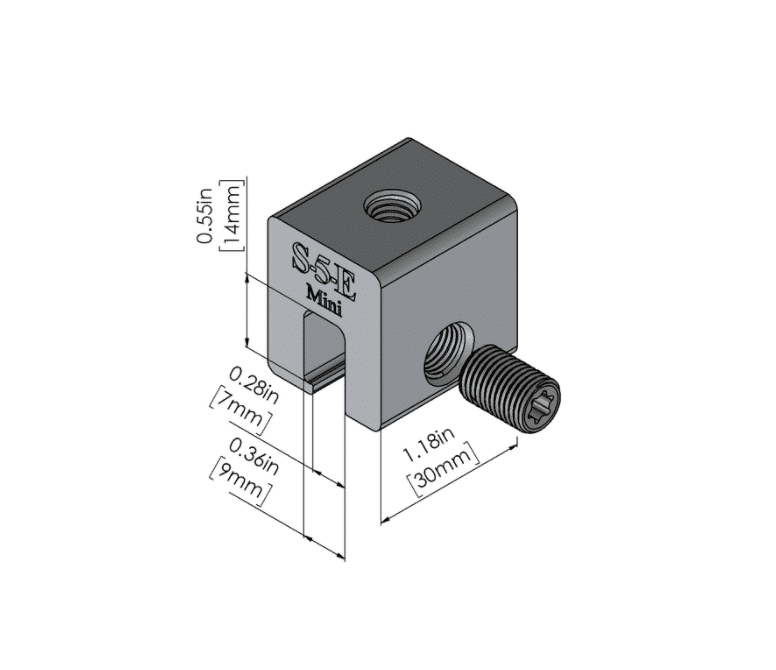

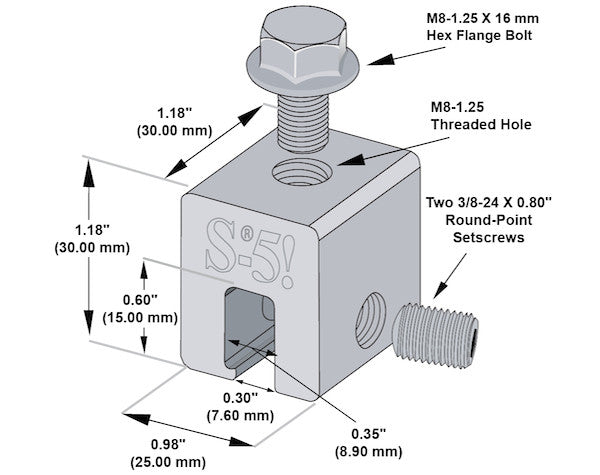

S-5-E™ Mini Seam Clamp

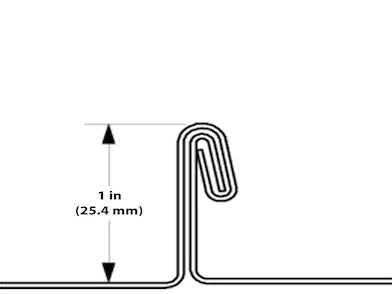

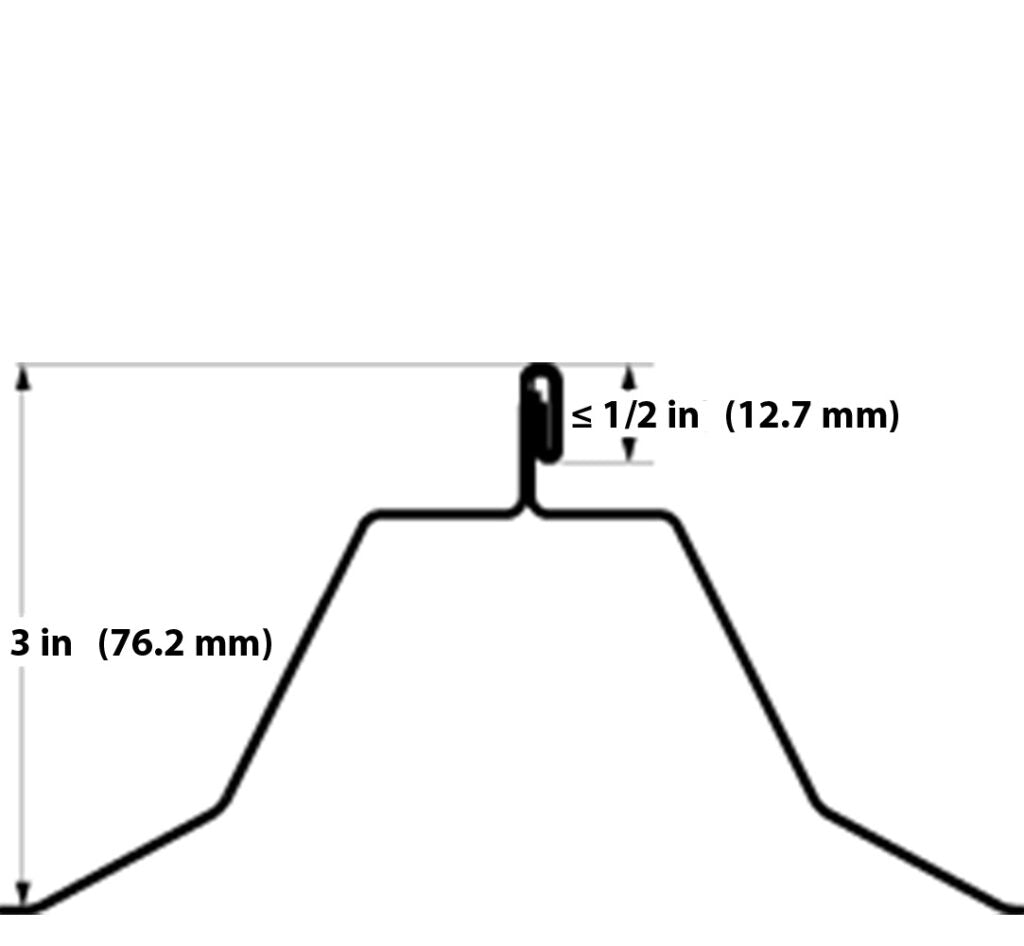

For traditional 1" and 1.5" tall double-folded seams.
Description
The medium-duty S-5-E™ Mini is a non-penetrating seam clamp designed specifically for double-folded standing seam roofs. Smaller and lower cost than the S-5-U™ and S-5-V™ series, but every bit as strong.
The S-5-E™ Mini is shorter than the S-5-E™ with a single setscrew rather than two. Ideal for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, and mechanical equipment.
For heavy-duty applications such as snow retention, consider the S-5-E™.
Features:
- Compatible with double-folded, standing seam metal roof profiles
- Compatible with Butler’s MR-24®
- Ideal for light and medium-duty applications
Includes:
- M8 bolt x 1
- T-30 Torx round-point setscrews x 1
- Torx bit tip for installation
Accommodates horizontal seams that are not fully closed.
$20.77
Sold out

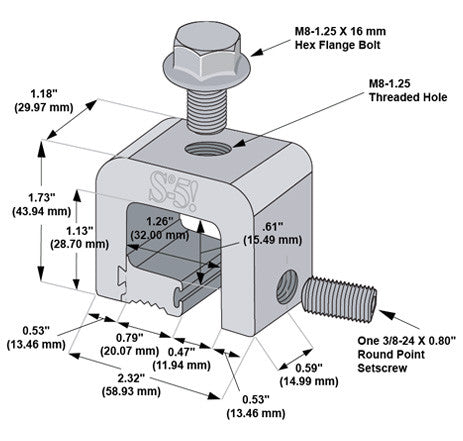

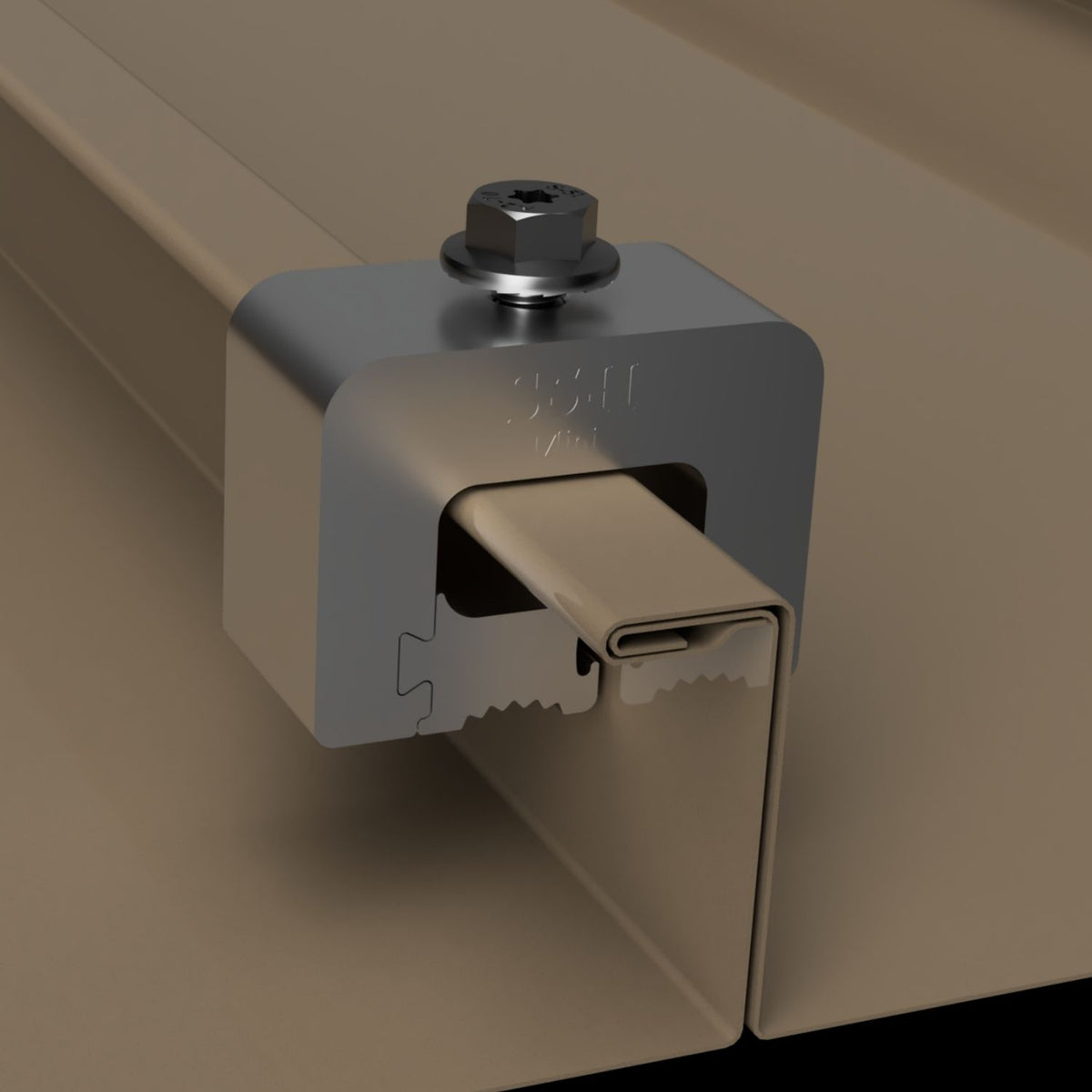

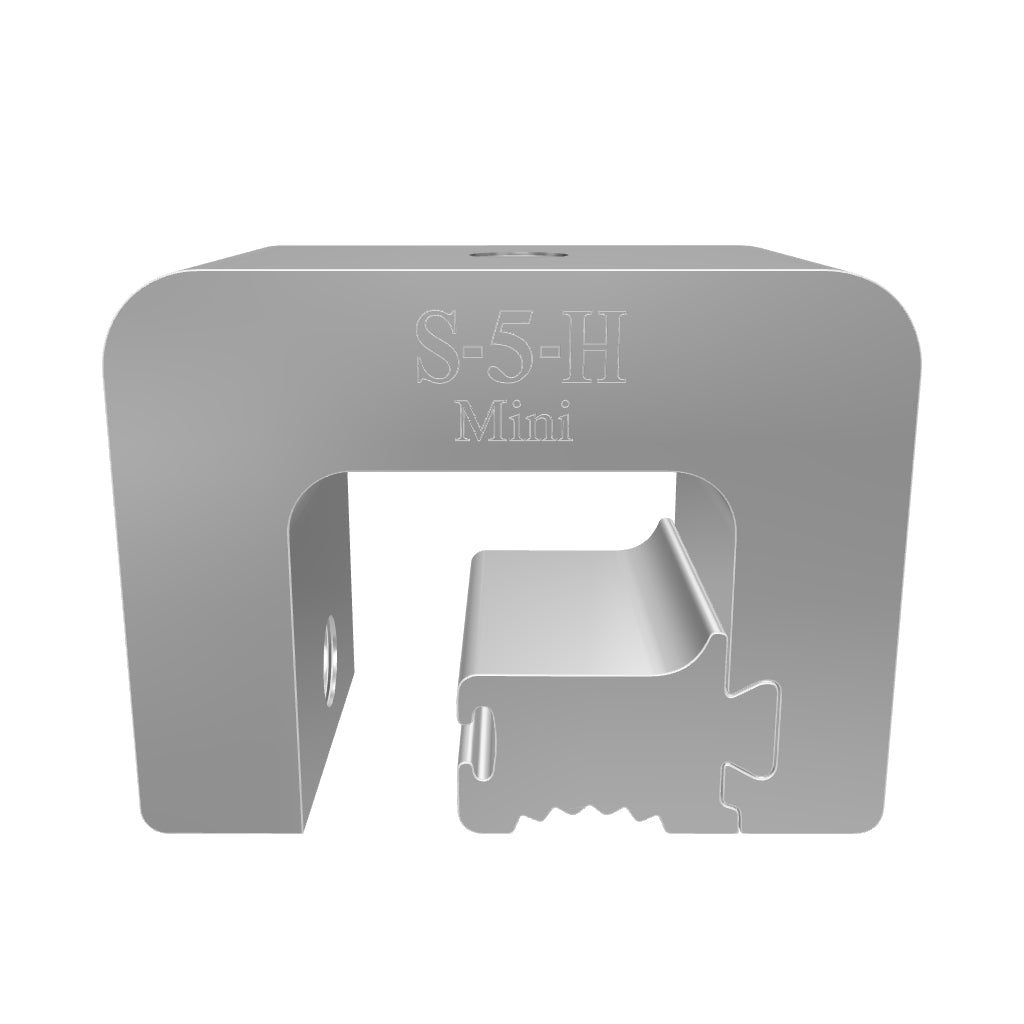

S-5-H™ Mini Seam Clamp

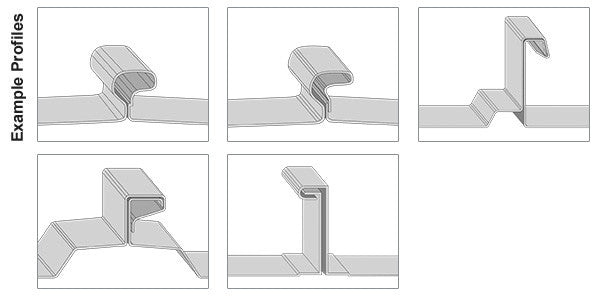

Accommodates horizontal seams that are not fully closed.
Description
The S-5-H Mini is the compact, lighter-duty version of the S-5-H for horizontal standing seams that aren't fully closed. It has one setscrew instead of two.
What it fits
- Horizontal seams that are not fully closed, up to 0.75" wide
Best for
DualGard snow guards, solar, satellite dishes and conduit.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-H Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
For horizontal, single-folded seams greater than 0.65” wide.
$9.07
Sold out

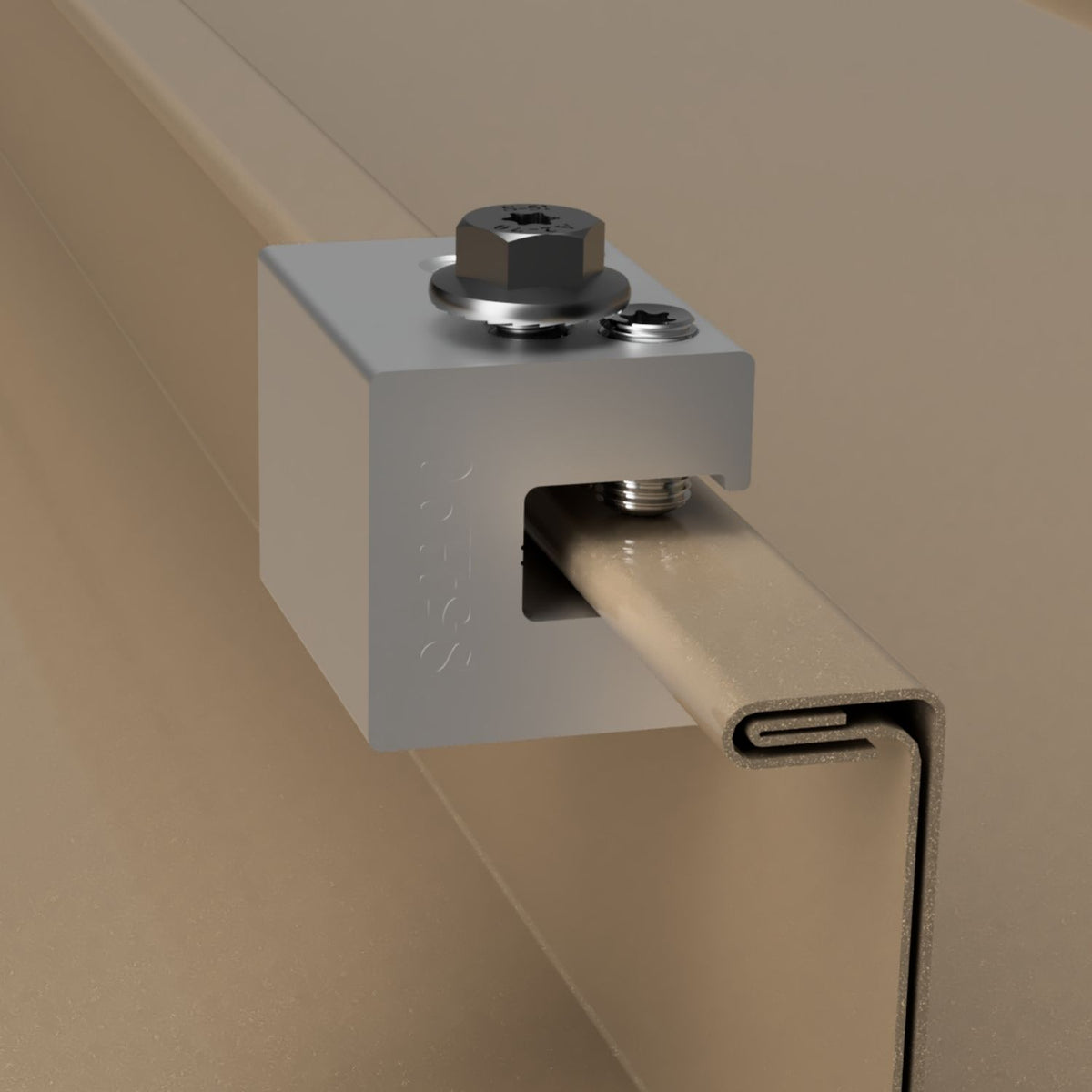

S-5-H90™ Mini Seam Clamp
For horizontal, single-folded seams greater than 0.65” wide.
Description
The S-5-H90 Mini is the compact, lighter-duty version of the S-5-H90 for closed horizontal, single-folded seams wider than 0.65". It has one setscrew instead of two.
What it fits
- Closed horizontal, single-folded seams greater than 0.65" wide
- A one-piece clamp with top-down setscrews
Best for
DualGard snow guards, solar and rooftop utilities.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-H90 Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
Fits mosts nail strip standing seam metal roof profiles.
$11.46
Sold out

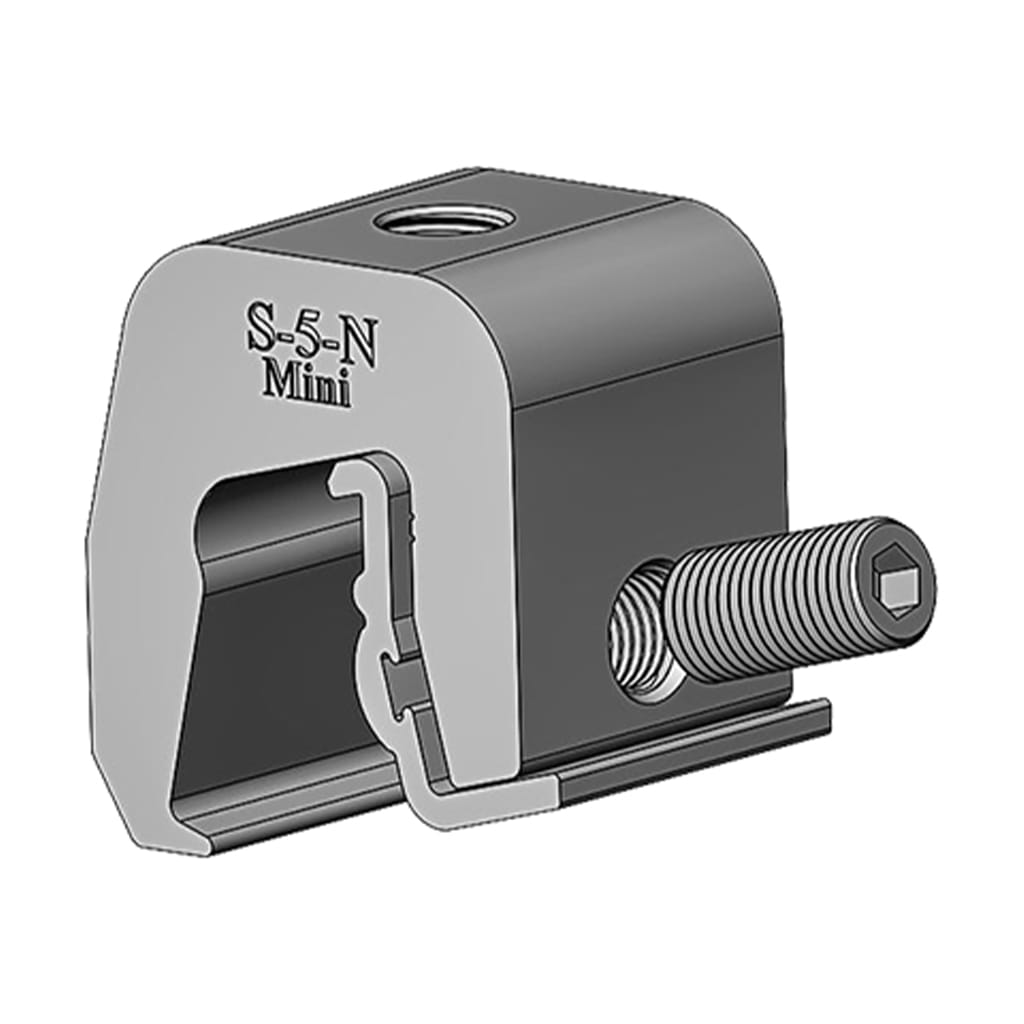

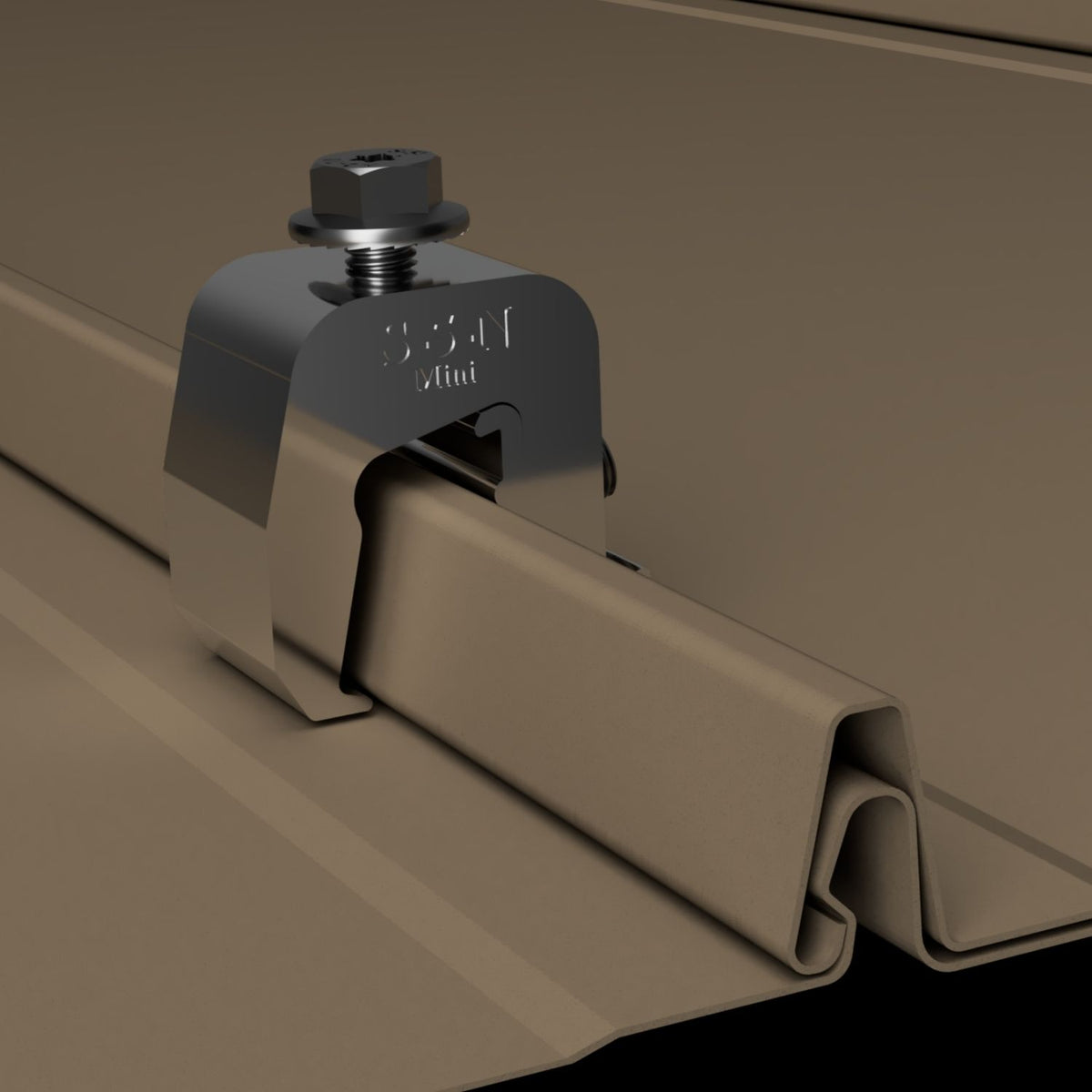

S-5-N™ Mini Seam Clamp
Fits mosts nail strip standing seam metal roof profiles.
Description
The S-5-N Mini is the compact, lighter-duty version of the S-5-N for 1" nail strip standing seam roofs. It's a bit shorter and has one setscrew instead of two.

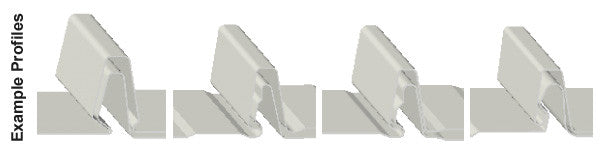

What it fits
- 1" nail strip profiles, including Taylor Metals Easy Lock, ASC Building Products Skyline Roofing and NewTech Machinery FF100
Best for
DualGard snow guards and all kinds of rooftop accessories.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-N Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
Accommodates most 1.5" narrow nail strip profiles.
$13.51
Sold out

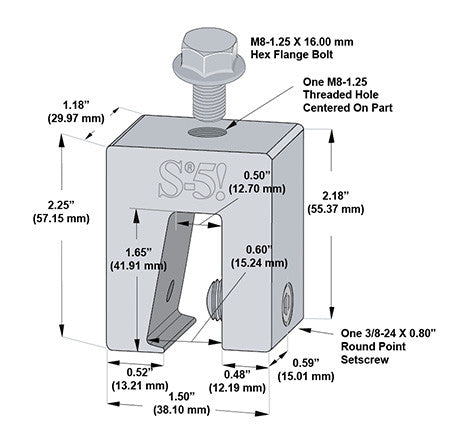

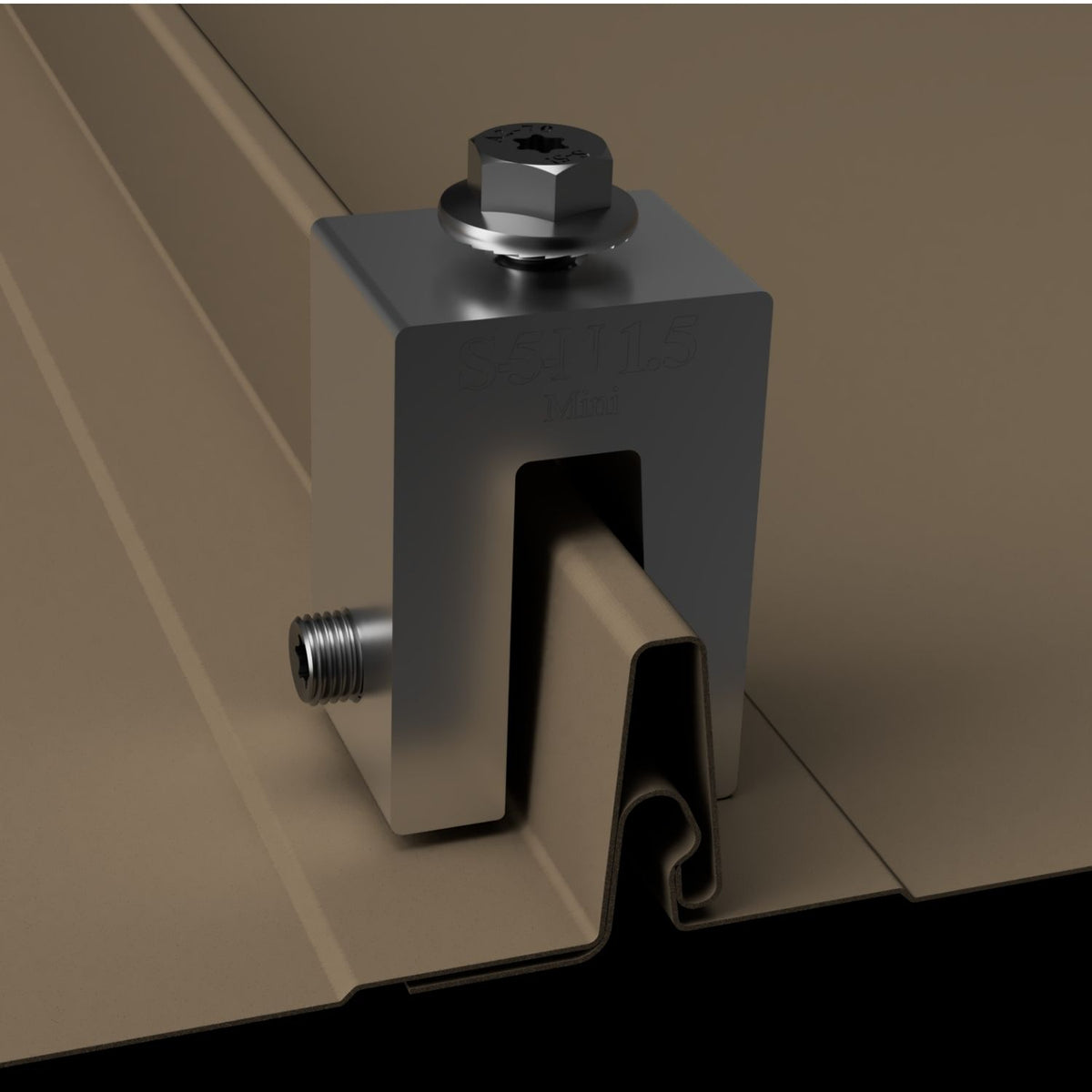

S-5-N™ 1.5 Mini Seam Clamp

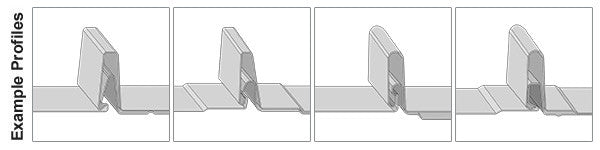

Accommodates most 1.5" narrow nail strip profiles.
Description
The S-5-N 1.5 Mini is the compact, lighter-duty version of the S-5-N 1.5 for 1.5" nail strip standing seam roofs. It has one setscrew instead of two.
What it fits
- Most 1.5" nail strip profiles, including Bridger Steel 1.5" Tru Snap, Schlebach 1.5" NailStrip, Sheet Metal Supply NS 1.5" and Sheffield Metals SMI 1.5"
Best for
DualGard snow guards, signs, walkways, satellite dishes, antennas, rooftop lighting and lightning protection systems.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-N 1.5 Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
For 1.5" nail strip profiles with a wider horizontal dimension.
$16.02
Sold out

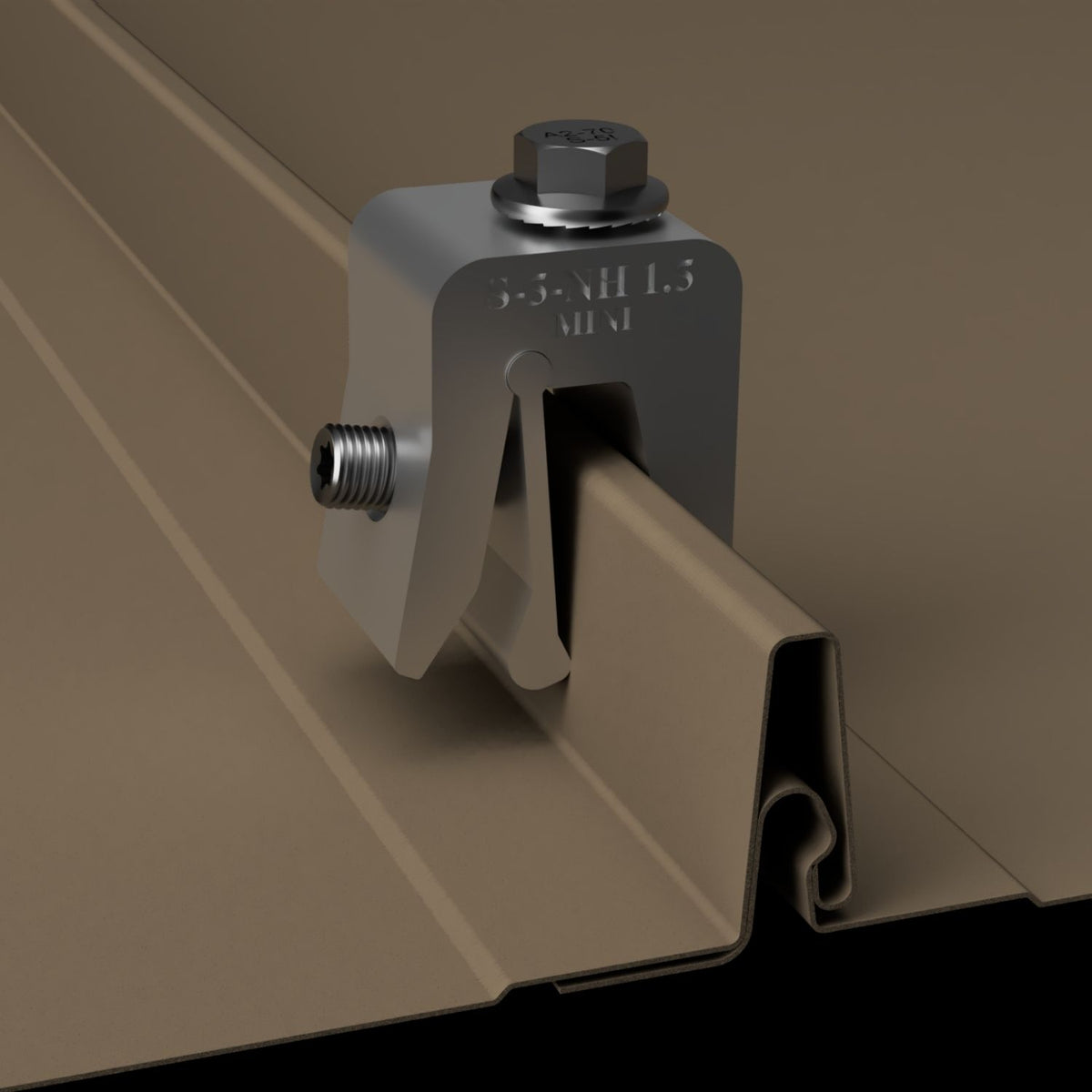

S-5-NH™ 1.5 Mini Seam Clamp
For 1.5" nail strip profiles with a wider horizontal dimension.
Description
The S-5-NH 1.5 Mini is the compact, lighter-duty version of the S-5-NH 1.5 hinge clamp, with one setscrew instead of two.
What it fits
- 1.5" nail strip profiles with a horizontal dimension over 0.475" and up to 0.800"
- Suits Vicwest Prestige, NewTech FF150 and similarly dimensioned profiles
Best for
DualGard snow guards, solar and rooftop utilities.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-NH 1.5 Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
For Snap-Lock, Angle-Seam, and single folded profiles.
$8.65
Sold out

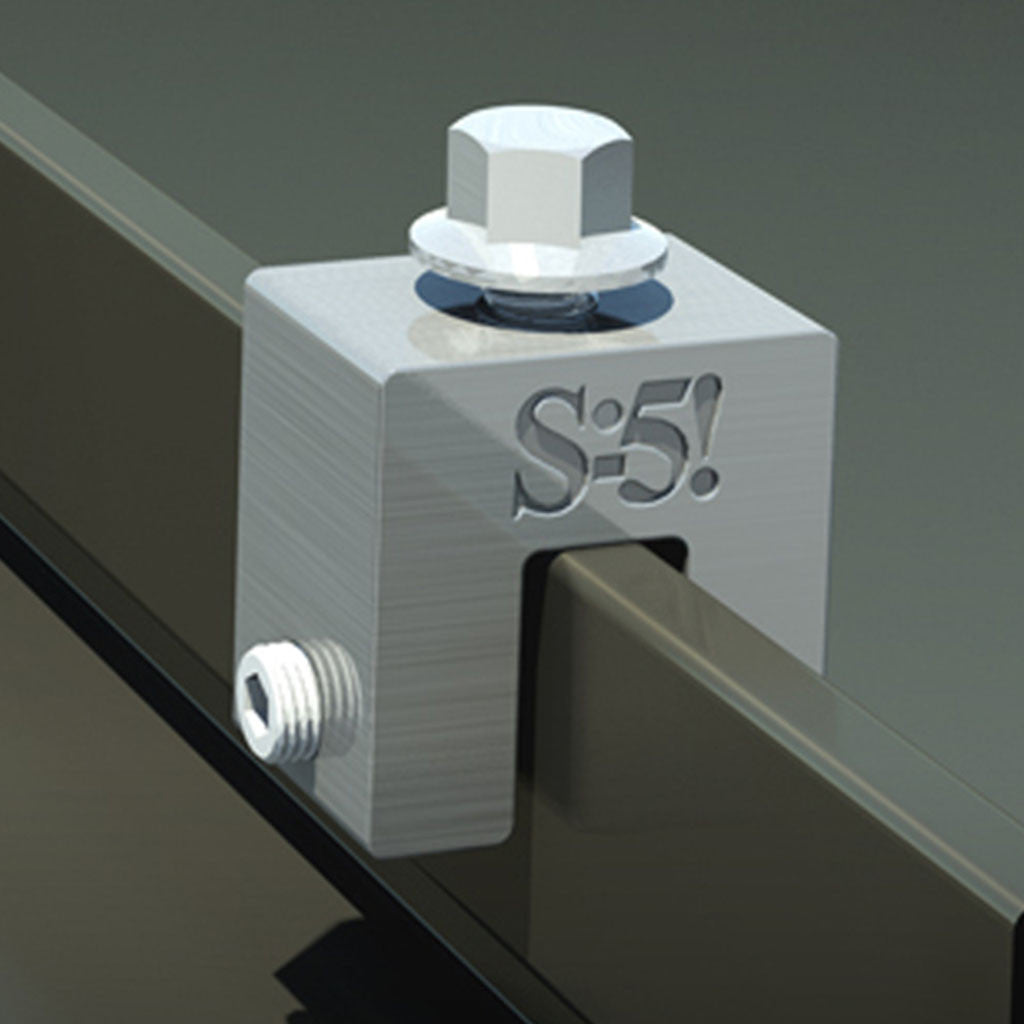

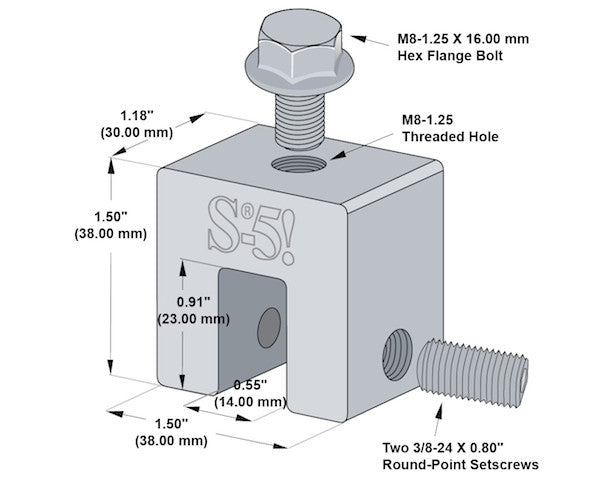

S-5-S™ Mini Seam Clamp

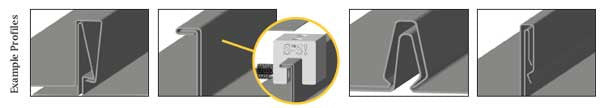

For Snap-Lock, Angle-Seam, and single folded profiles.
Description
The S-5-S Mini is the compact, lighter-duty version of the S-5-S for snap-lock and single-folded angle-seam profiles. It has one setscrew instead of two.
What it fits
- Most snap-lock profiles, such as the Firestone UC4 standing seam
- Single-folded (angle-seam) profiles with a horizontal dimension of 0.5" or less
Best for
DualGard snow guards, solar panels, signs, walkways and other rooftop equipment.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-S Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
Designed for "T"-shaped seams up to 1.3" wide.
$17.31
Sold out

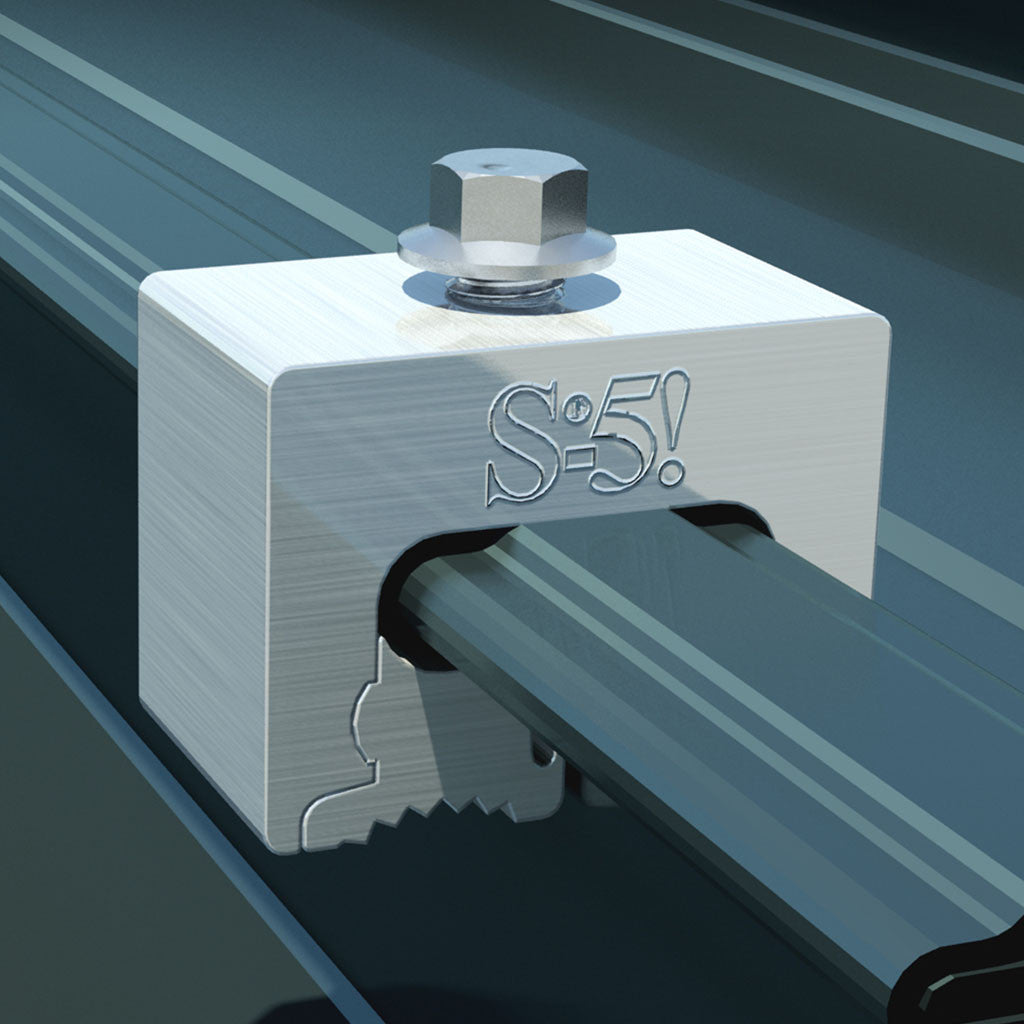

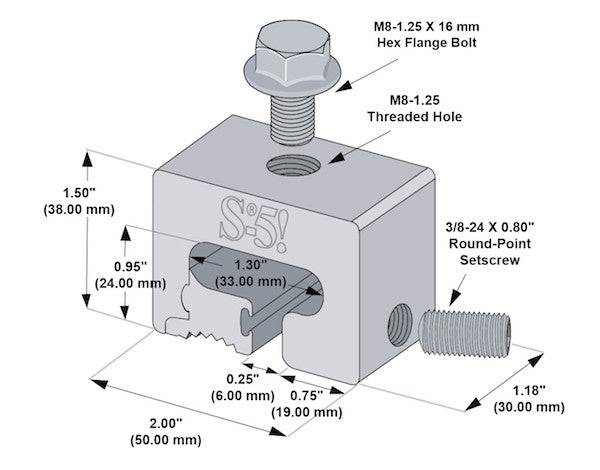

S-5-T™ Mini Seam Clamp
Designed for "T"-shaped seams up to 1.3" wide.
Description
The S-5-T Mini is the compact, lighter-duty version of the S-5-T for T-shaped standing seams. It has one setscrew instead of two.

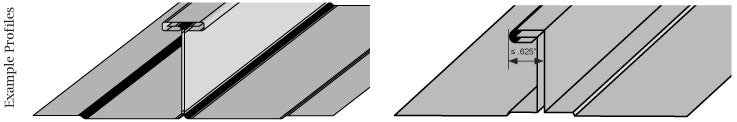

What it fits
- T-shaped seams up to 1.3" (33 mm) wide
- A match for profiles like the Vicwest Tradition 150 and Garland R-Mer Span
Best for
DualGard snow guards, bracing stack pipes and mechanical fixtures like raceways, and solar.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-T Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
Universal clamp suitable for most standing seam profiles.
$12.31
Sold out

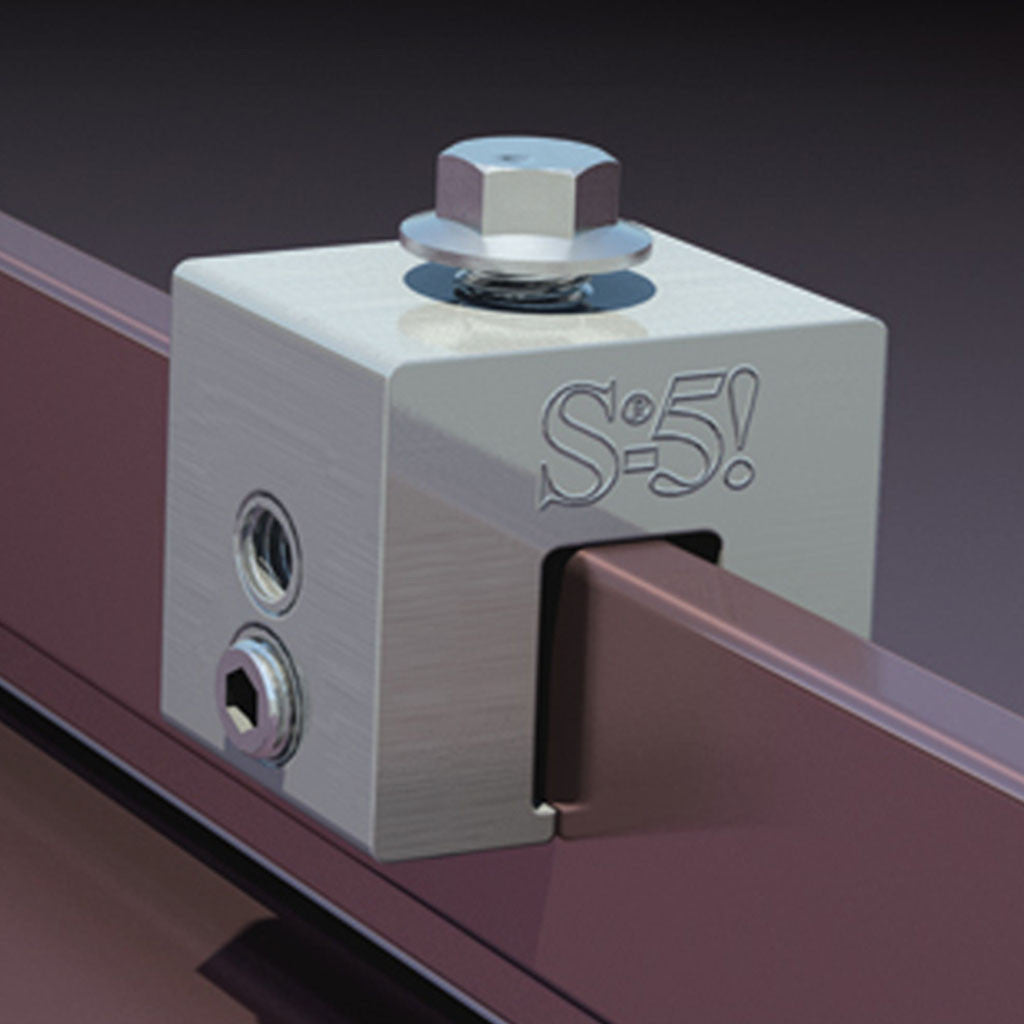

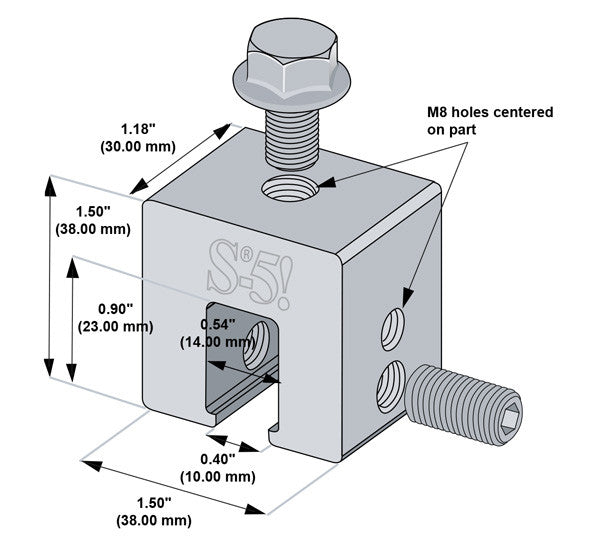

S-5-U™ Mini Seam Clamp

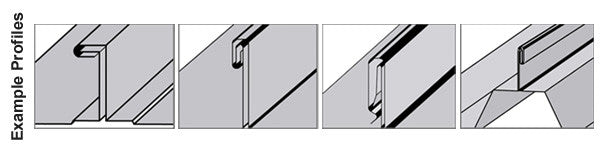

Universal clamp suitable for most standing seam profiles.
Description
The S-5-U Mini is the compact, lighter-duty version of the universal S-5-U. It fits the same wide range of standing seam profiles, with one setscrew instead of two.
What it fits
- Vertical standing seams, and it rotates 90 degrees to fit many horizontal seams
- Most structural and architectural standing seam profiles
Best for
DualGard snow guards, solar installs on metal roofs and other rooftop utilities.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-U Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
For most machine-folded, vertical, standing seams.
$9.65
Sold out

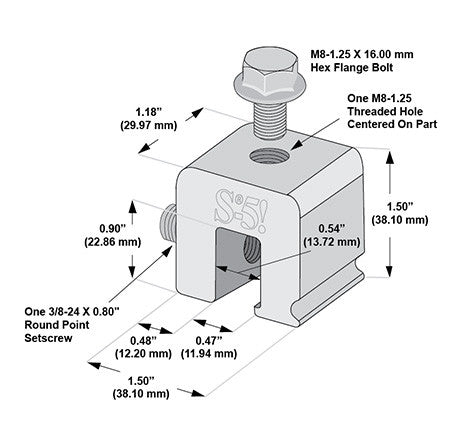

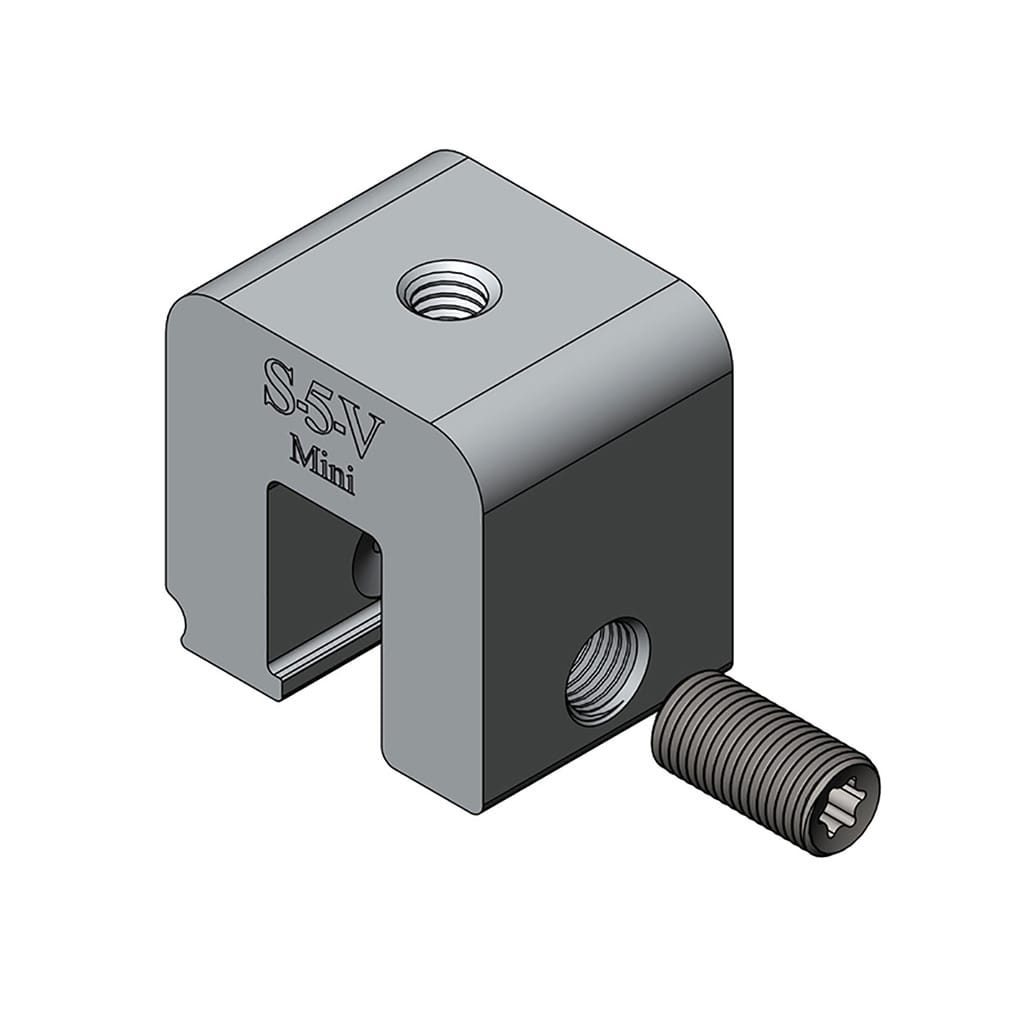

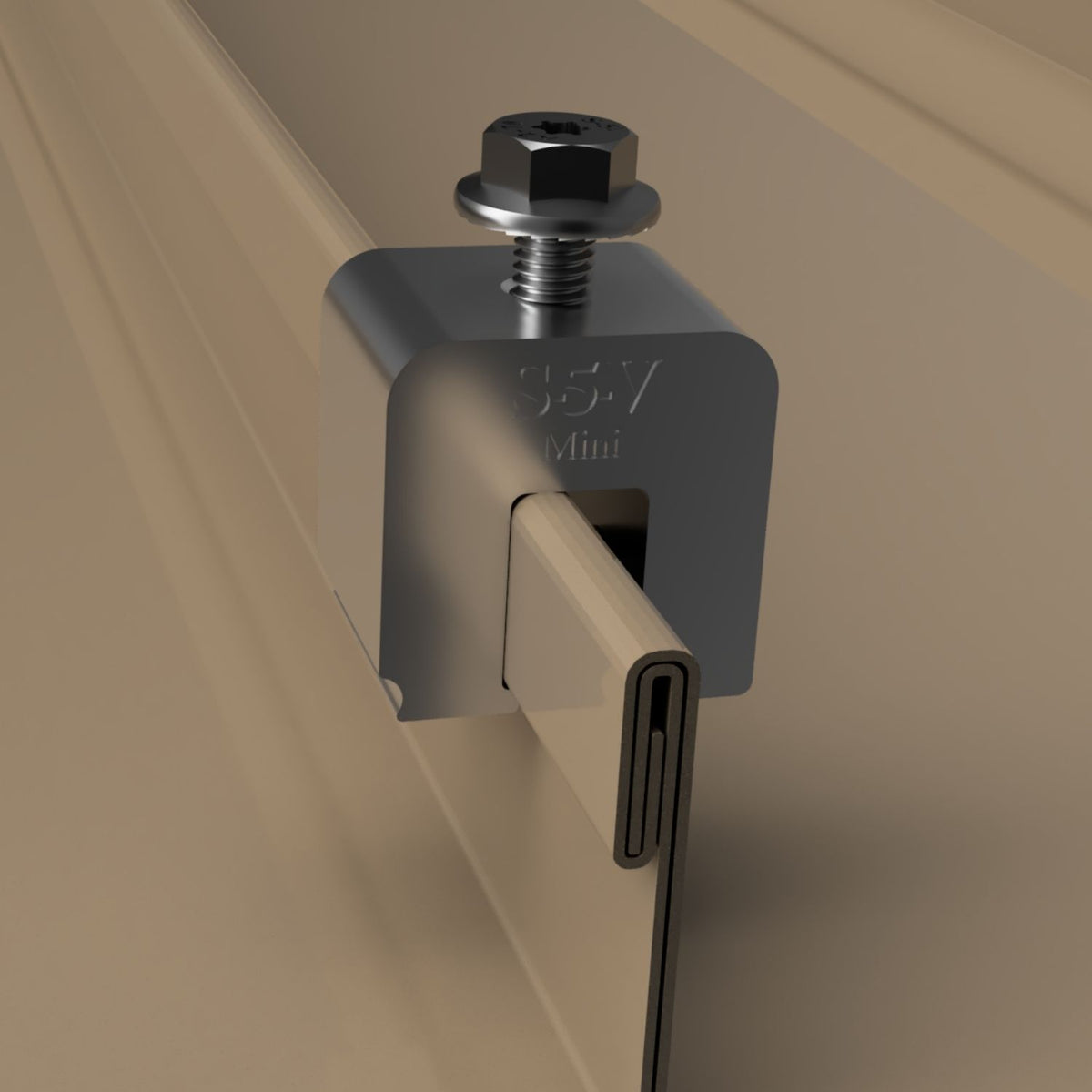

S-5-V™ Mini Seam Clamp
For most machine-folded, vertical, standing seams.
Description
The S-5-V Mini is the compact, lighter-duty version of the S-5-V for machine-folded vertical standing seams. It has one setscrew instead of two.
What it fits

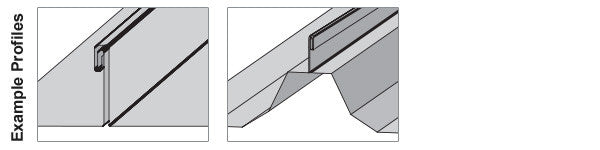

- Most machine-folded standing seams in a vertical orientation
Best for
DualGard snow guards, walkways, antennas, rooftop lighting, lightning protection systems and solar arrays.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-V Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
For "Zib-Rib" or "Bulb"-shaped standing seams.
$17.95
Sold out

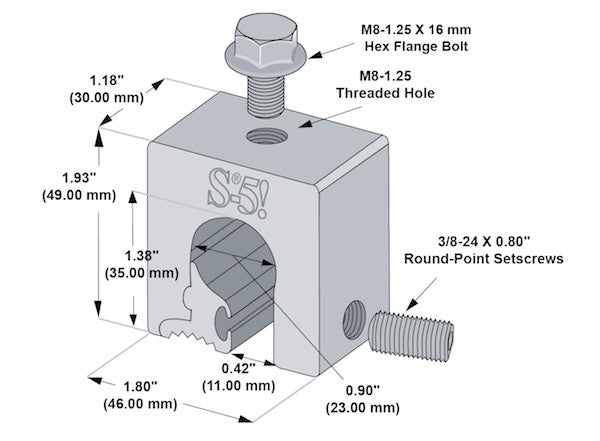

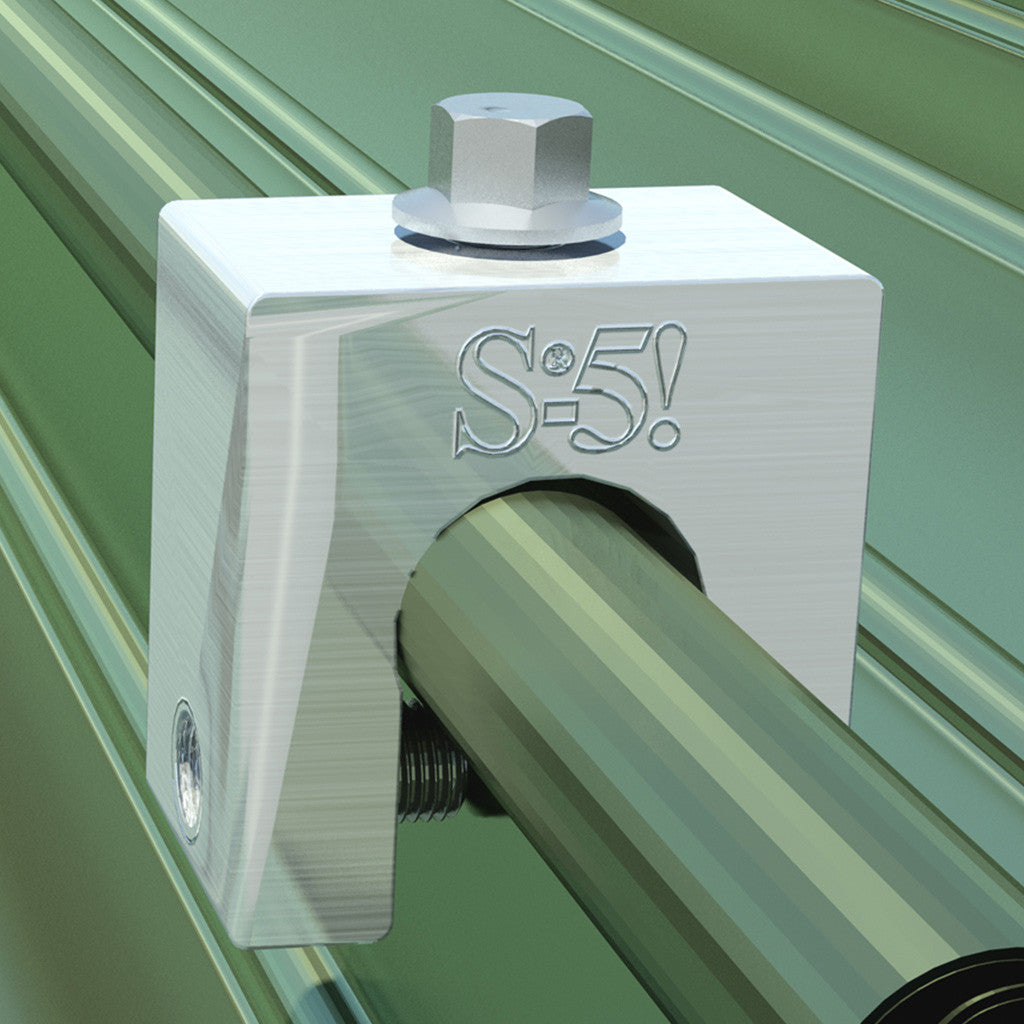

S-5-Z™ Mini Seam Clamp

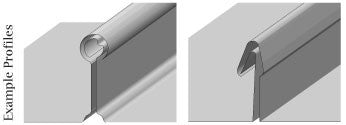

For "Zib-Rib" or "Bulb"-shaped standing seams.
Description
The S-5-Z Mini is the compact, lighter-duty version of the S-5-Z for Zip-Rib, Kalzip and similar bulb-seam profiles. It has one setscrew instead of two.
What it fits
- Zip-Rib, Kalzip and similar bulb-seam profiles
Best for
DualGard snow guards, solar and other light-duty installs.
What's included
- M8 bolt x 1
- Setscrew x 1
- Setscrew bit tip for installation
Works with
DualGard, PVKIT.
Good to know
Using a Mini clamp for snow retention? DualGard is the snow guard system designed for Minis. For ColorGard or X-Gard, use the standard S-5-Z Seam Clamp. The standard clamp also has the two-setscrew design S-5! recommends when holding strength parallel to the seam matters.
Ships duty-free across Canada.
S-5!® Mounting Brackets for Exposed Fastener Metal Roofs
Product
Price
Quantity
Add to cart
Versatile mounting bracket for corrugated roofs.
$15.65
Sold out

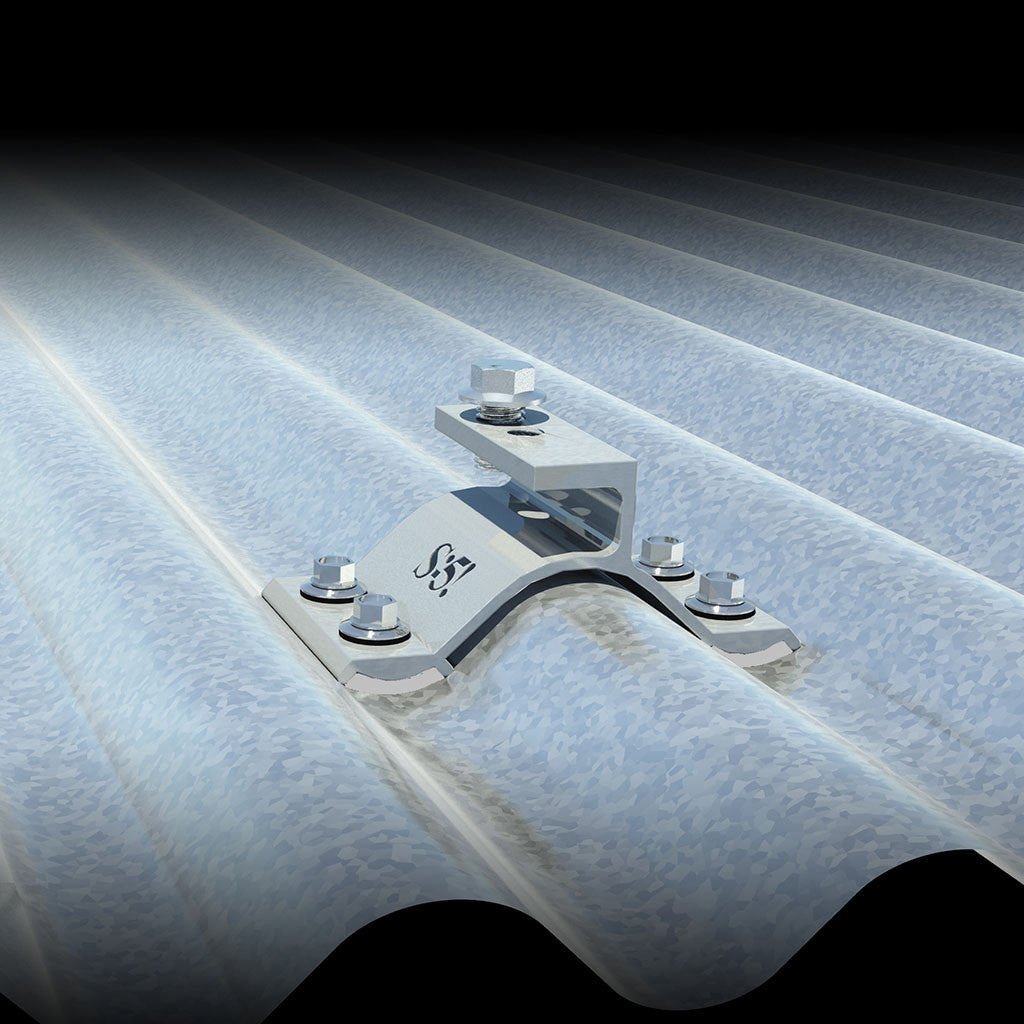

CorruBracket™ with M8 Bolt
Versatile mounting bracket for corrugated roofs.
Description
CorruBracket™ can be used to mount almost anything to corrugated metal roofing. CorruBracket is compatible with 7/8" and 3/4" U.S. corrugated profiles. No messy sealants to apply! No chance for leaks! The CorruBracket comes with factory-applied butyl sealant already in the base, and the patented reservoir conceals the sealant from UV exposure, preventing UV degradation.
Includes M8 Bolt.

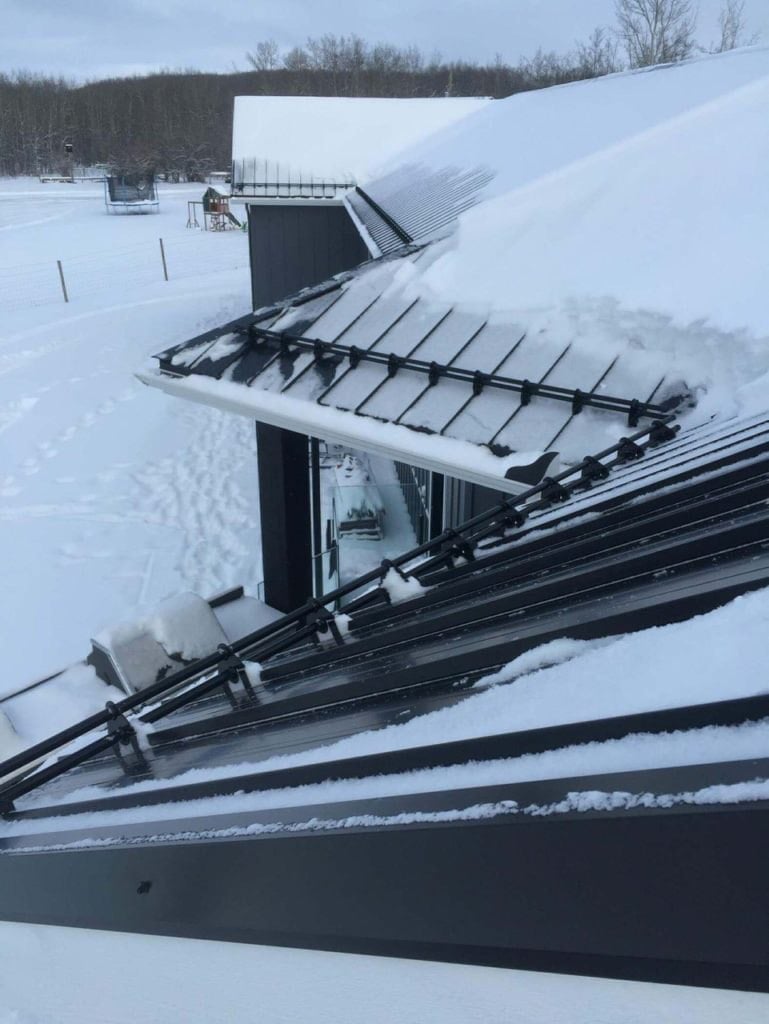

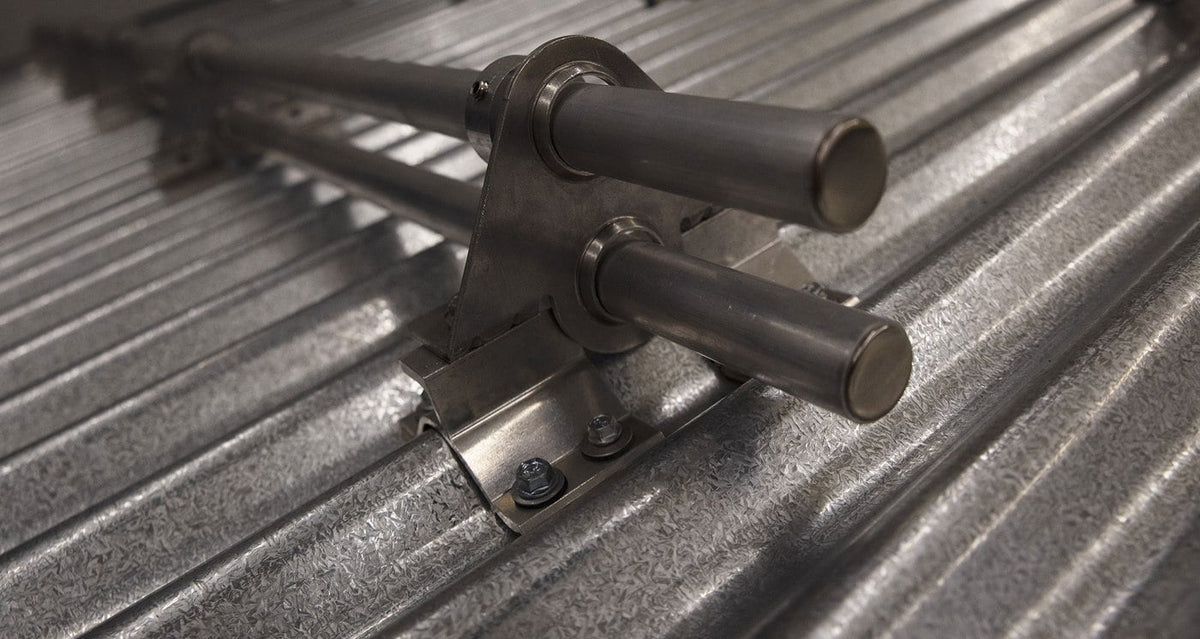

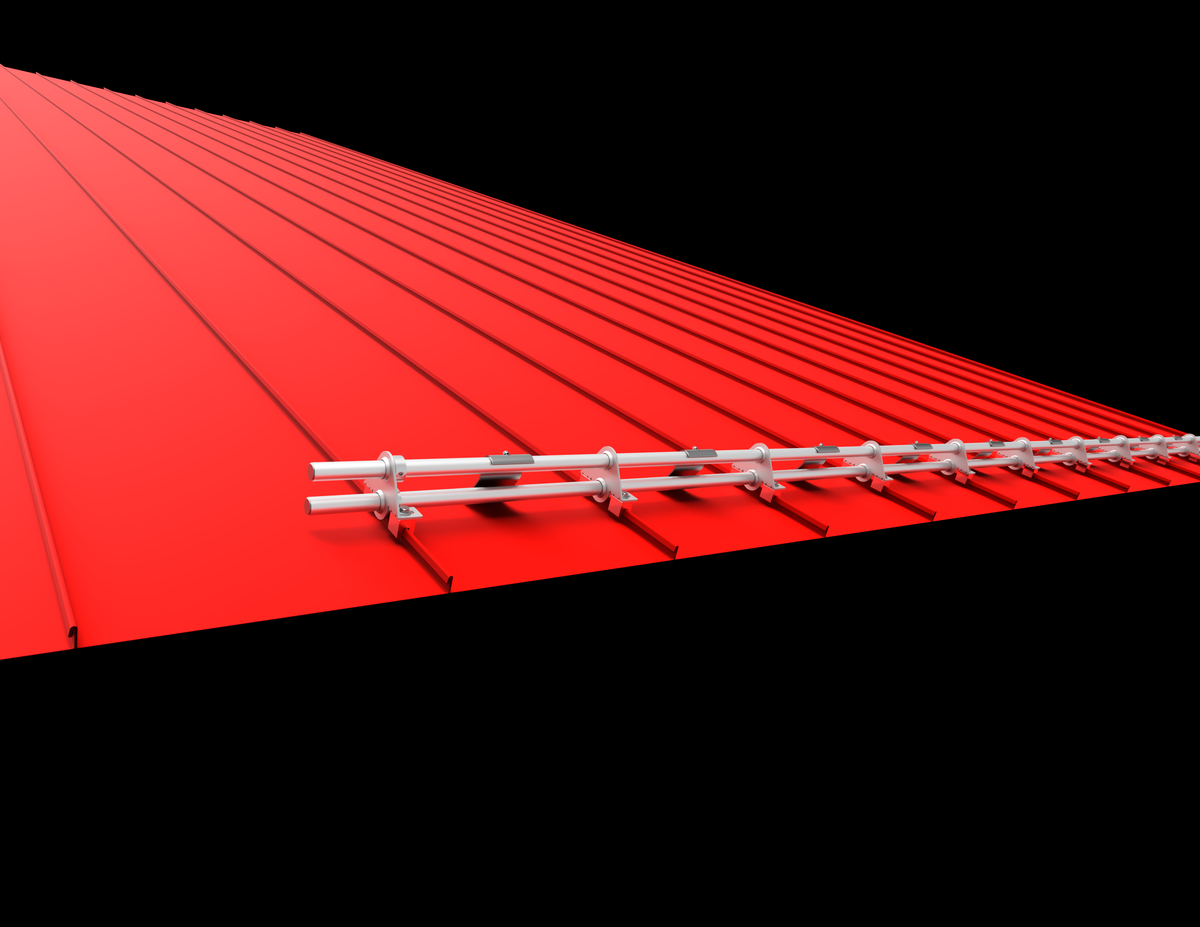

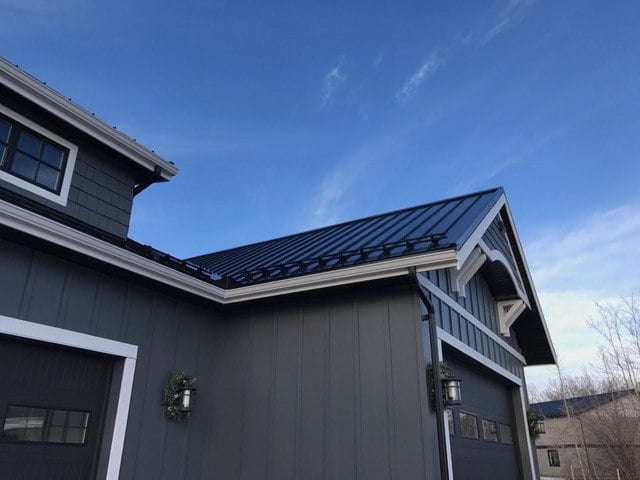

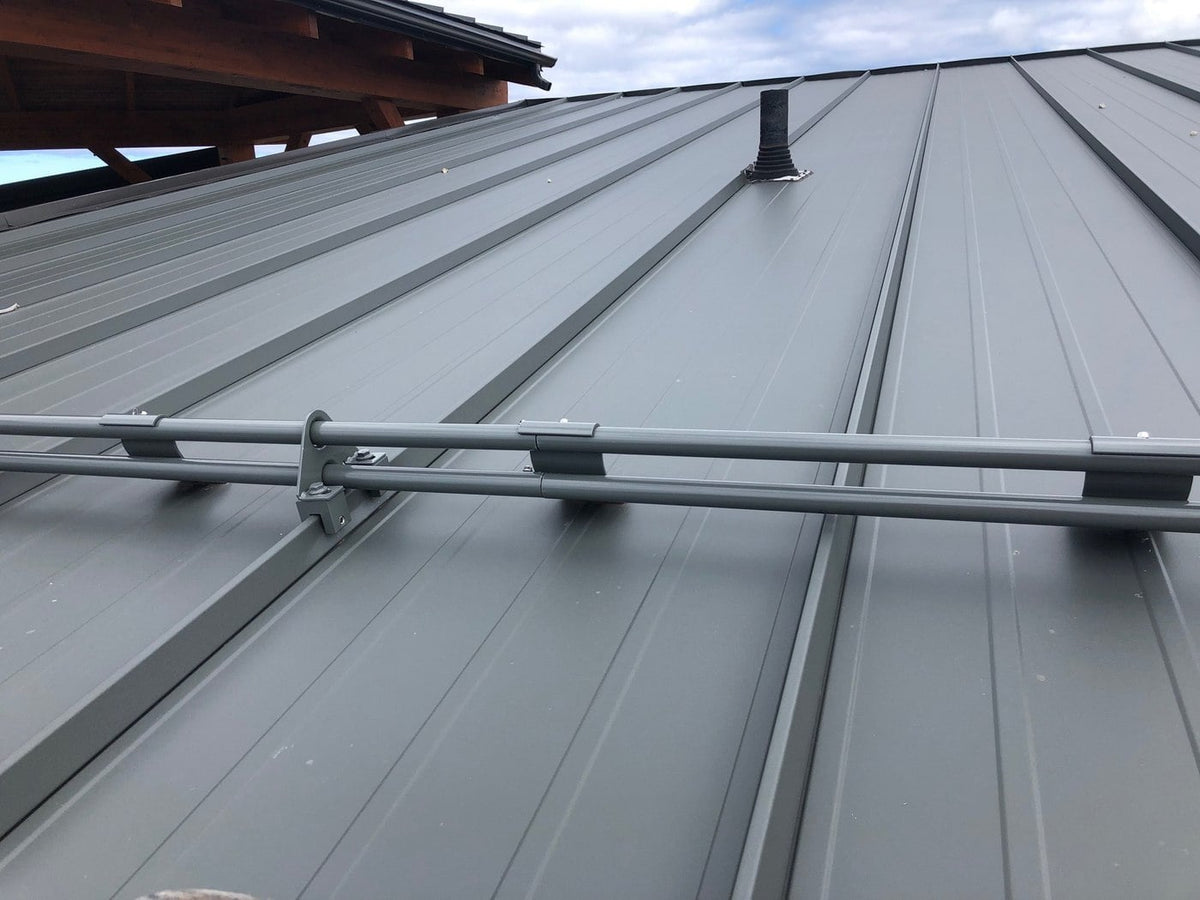

S-5!® DualGard™
DualGard is the most versatile and reliable 1-inch, two-pipe snow retention system for all standing seam roof applications.
DualGard utilizes two patented S-5! mini clamps for extra strength versus other two-pipe systems.
All DualGard components can be used with VersaGard™ and VersaGard™ V, offering a complete snow retention system for exposed fasten roofs.
Attractive and Economical 2 pipe snow retention system using the S-5 clamps.
The only system that uses the MINI type clamps for the Standing Seam.
2 MINI clamps are required per bracket sold separately.
Product Brochure
View PDF: Product Brochure
Installation Instructions
View PDF: Installation Instructions
DualClip Installation Instructions
View PDF: DualClip Installation Instructions
