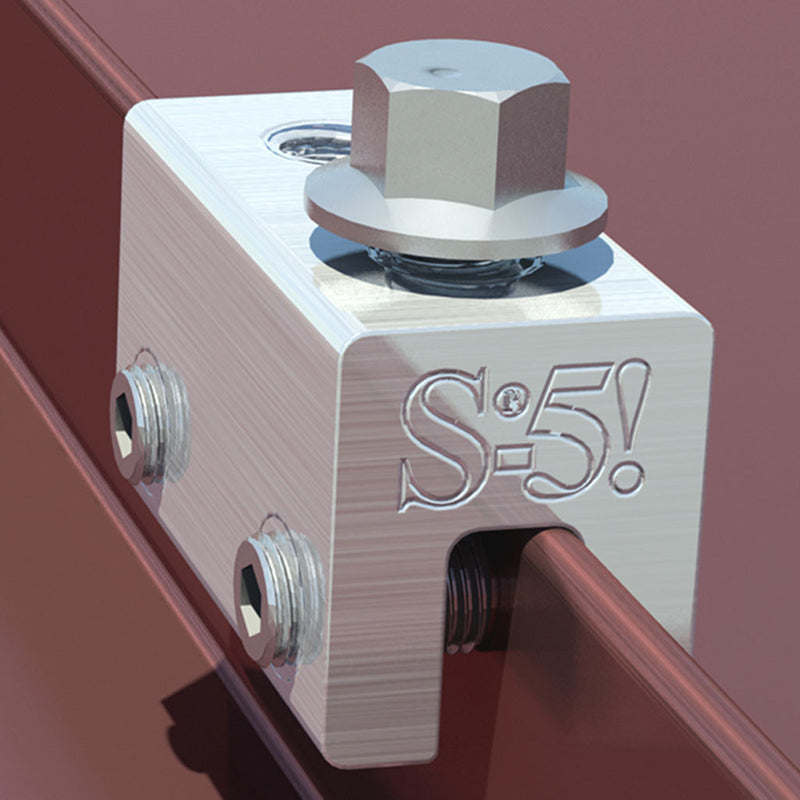

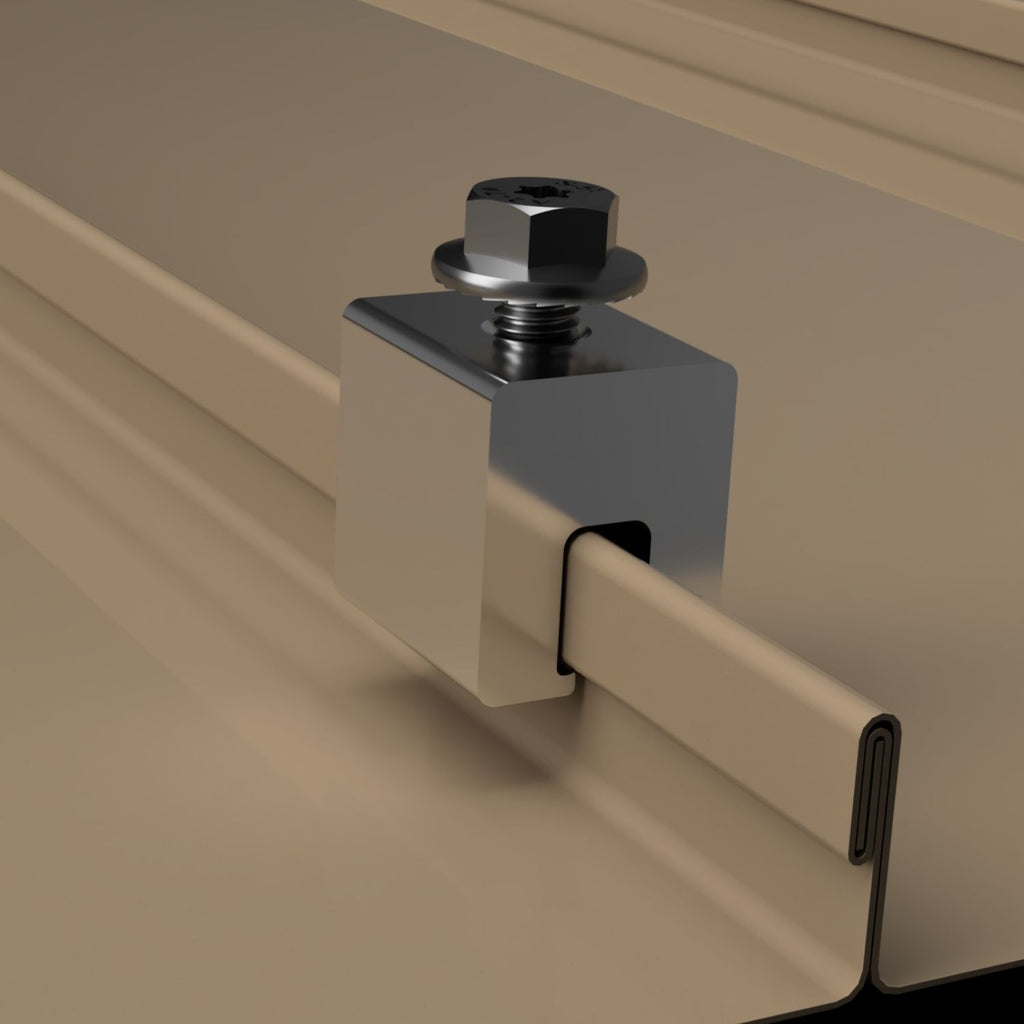

The medium-duty S-5-E™ Mini is a non-penetrating seam clamp designed specifically for double-folded standing seam roofs. Smaller and lower cost than the S-5-U™ and S-5-V™ series, but every bit as strong.

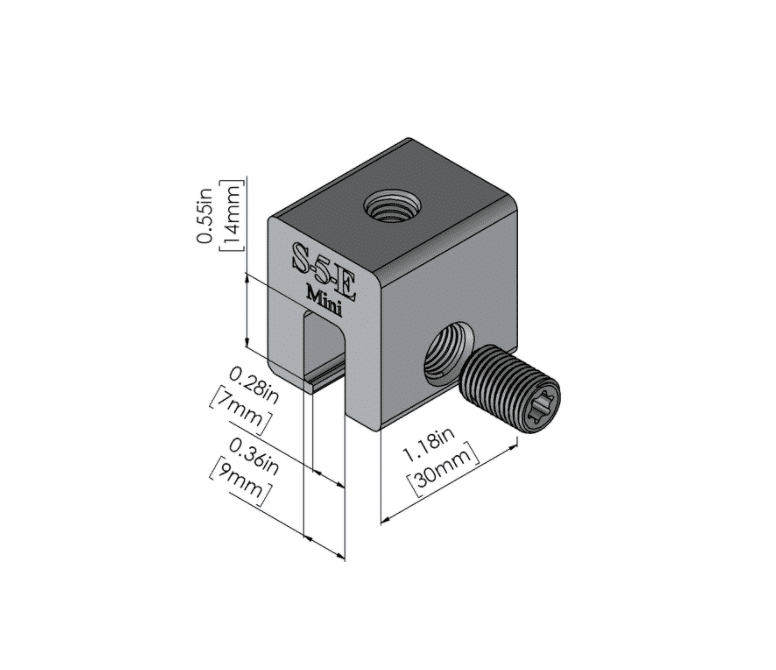

The S-5-E™ Mini is shorter than the S-5-E™ with a single setscrew rather than two. Ideal for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, and mechanical equipment.
For heavy-duty applications such as snow retention, consider the S-5-E™.
Features:

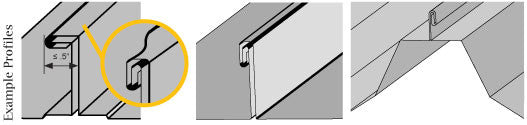

- Compatible with double-folded, standing seam metal roof profiles
- Compatible with Butler’s MR-24®
-
Ideal for light and medium-duty applications
Includes:
- M8 bolt x 1
- T-30 Torx round-point setscrews x 1
- Torx bit tip for installation
