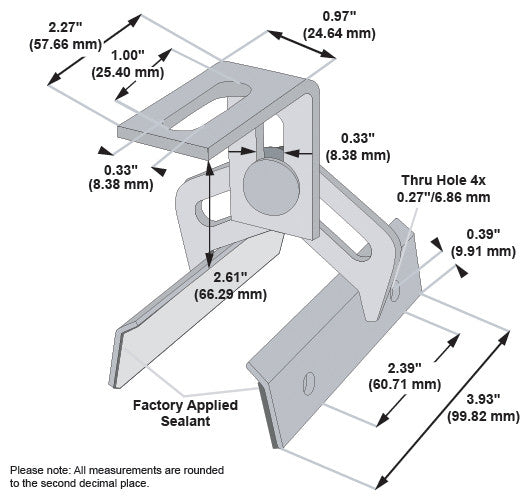

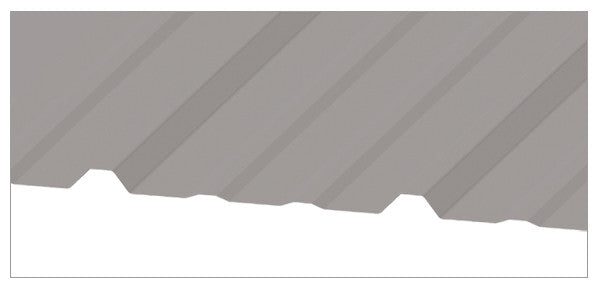

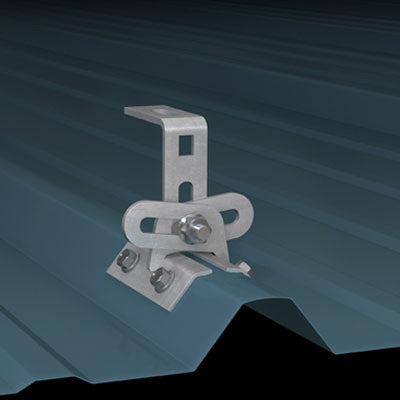

ProteaBracket™ is the most versatile exposed-fastened metal roof attachment solution on the market, fitting most trapezoidal sheet profiles with and without intermediate insulation. It features an adjustable attachment base and multiple solar module attachment options (illustrated below) to accommodate varying widths and heights. There are no messy sealants to apply and no chance for leaks; the ProteaBracket comes with factory applied, adhesive rubber sealant to ensure quick installation and a weather-proof fit.
Installation is simple! The ProteaBracket is mounted directly onto the crown of the panel, straddling the profile. No surface preparation is necessary; simply wipe away excess oil and debris, align, and apply. Secure ProteaBracket through its pre-punched holes, using the hardened drill point screws.
ProteaBracket is the perfect match for the PV Kit and spares you the hassle of cold-bridging! For a solar attachment solution that is both economical and easy to use, choose ProteaBracket.
Product
Price
Quantity
Add to cart
Versatile, adjustable bracket for up to 3" trapezoidal ribs.
$22.80
Sold out
Protea™ Bracket
Versatile, adjustable bracket for up to 3" trapezoidal ribs.
Description
| Clamps & Brackets | ProteaBracket™ | ProteaBracket
Mounting bracket for up to 1" trapezoidal ribs metal roofs.
$15.29
Sold out

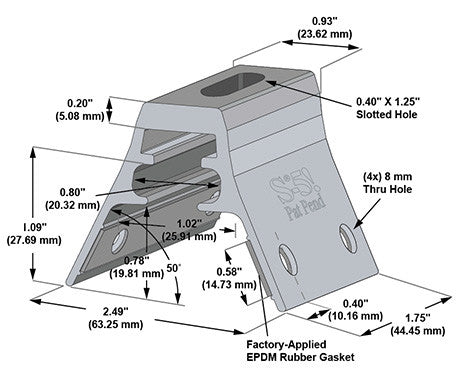

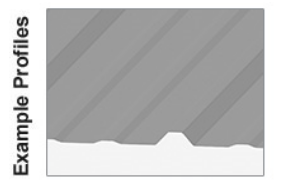

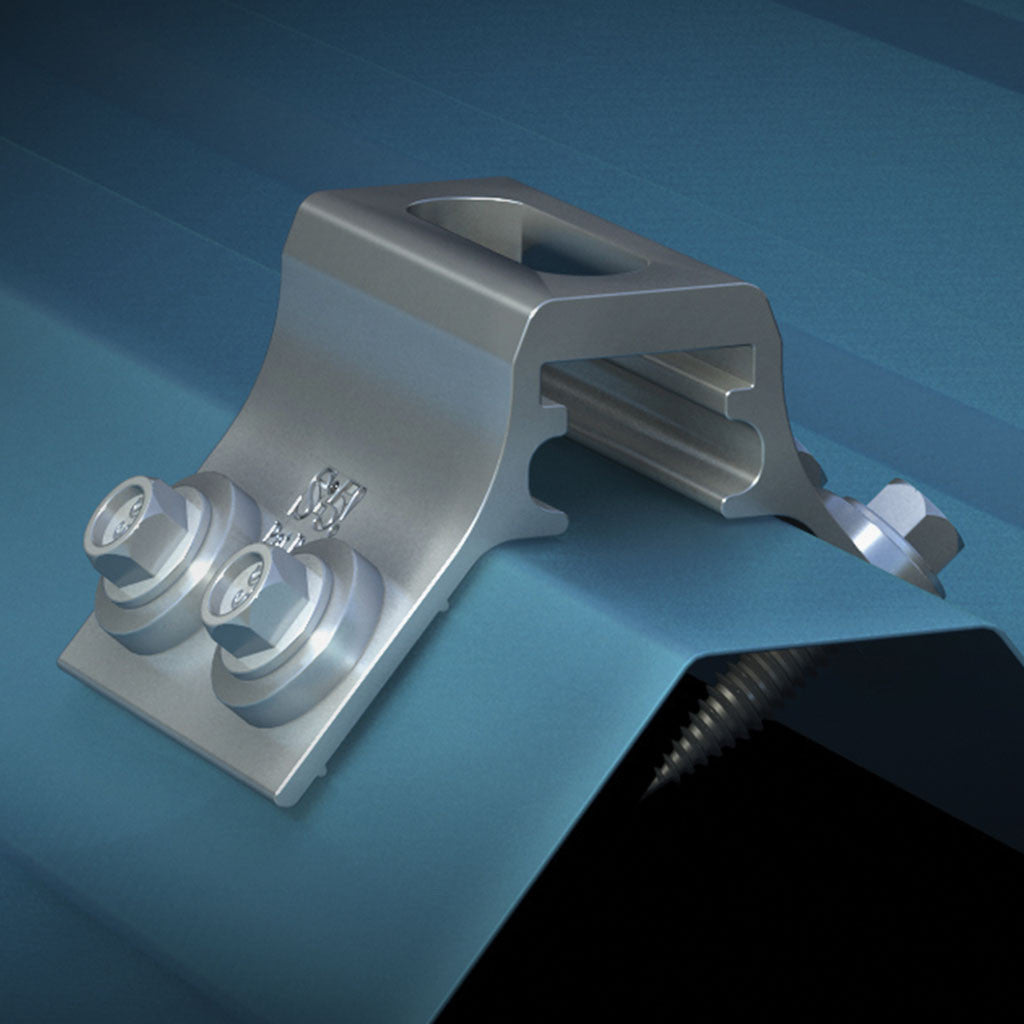

RibBracket™
Mounting bracket for up to 1" trapezoidal ribs metal roofs.
Description
S-5! RibBracket™ can be used to mount almost anything onto the most common exposed-fastened, trapezoidal roof profi les marketed in North America today. RibBracket is the perfect match for our PV Kit, or any other ancillary application, and eliminates worry about cold bridging! RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifi es alignment and maximizes flexibility in attaching ancillaries.
Mounting bracket for up to 1.25" trapezoidal ribs metal roofs.
$15.29
Sold out
RibBracket™ II
Mounting bracket for up to 1.25" trapezoidal ribs metal roofs.
Description
S-5! RibBracket™ can be used to mount almost anything onto the most common exposed-fastened, trapezoidal roof profi les marketed in North America today. RibBracket is the perfect match for our PV Kit, or any other ancillary application, and eliminates worry about cold bridging! RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifi es alignment and maximizes flexibility in attaching ancillaries.
Mounting bracket for up to 1.375" trapezoidal ribs metal roofs.
$15.29
Sold out
RibBracket™ III
Mounting bracket for up to 1.375" trapezoidal ribs metal roofs.
Description
S-5! RibBracket™ can be used to mount almost anything onto the most common exposed-fastened, trapezoidal roof profi les marketed in North America today. RibBracket is the perfect match for our PV Kit, or any other ancillary application, and eliminates worry about cold bridging! RibBracket is extremely economical and facilitates quick and easy installation. The slotted top hole, which accommodates standard M8 nuts and bolts, simplifi es alignment and maximizes flexibility in attaching ancillaries.
Attaches ColorGard® to 1" narrow ribbed trapezoidal IMPs.
$21.53
Sold out

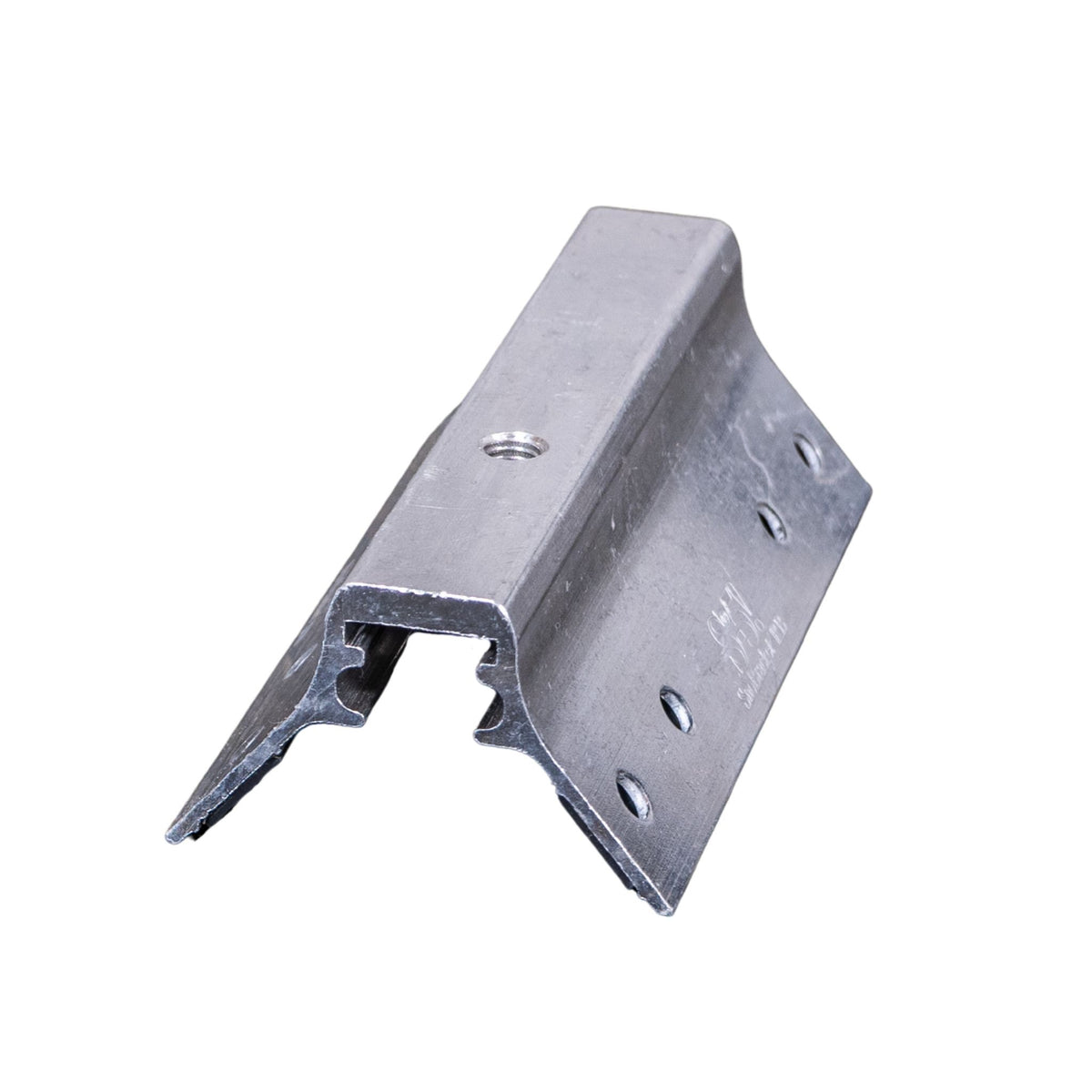

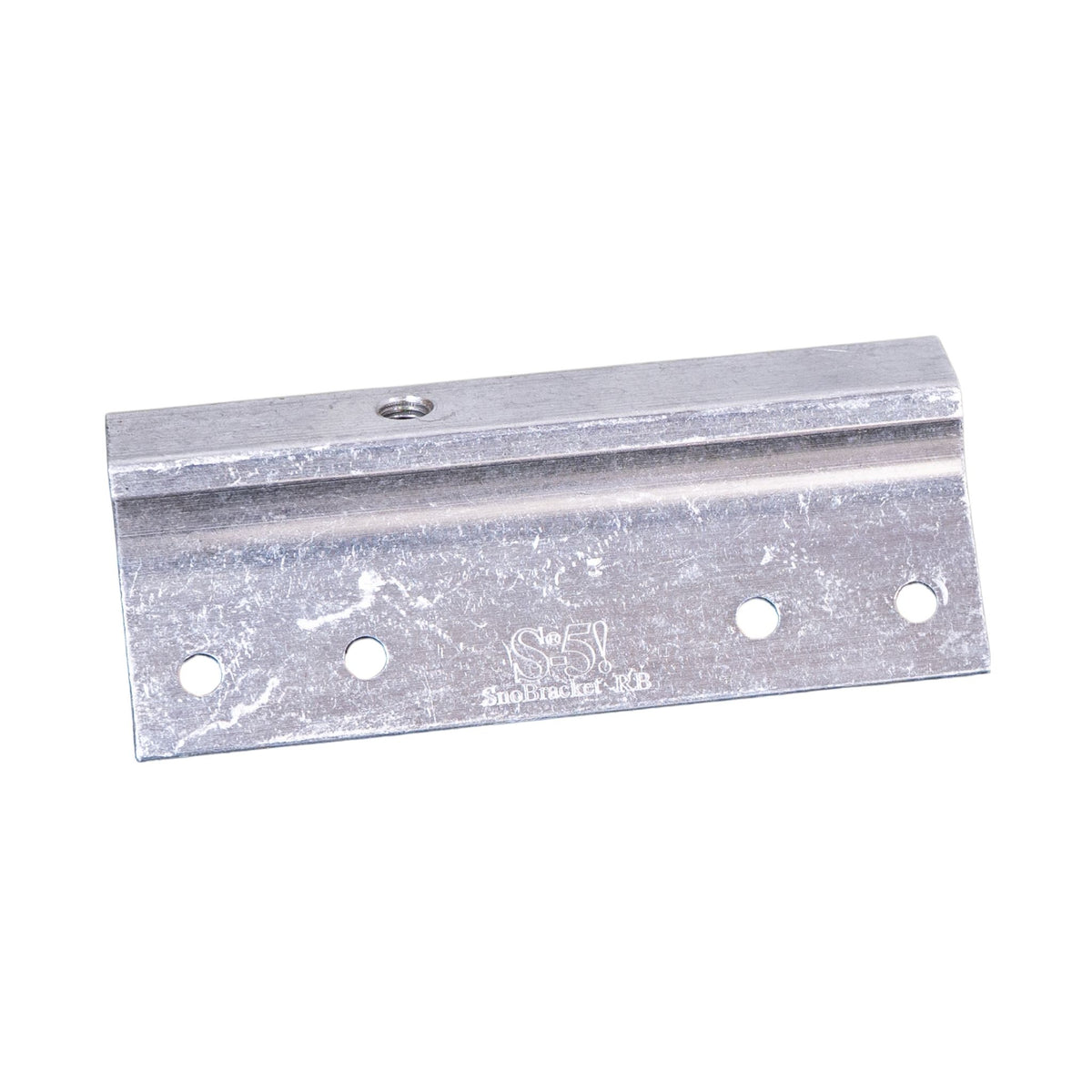

SnoBracket™ RB
Attaches ColorGard® to 1" narrow ribbed trapezoidal IMPs.
Description
SnoBracket is a sheeting-only bracket created specifically for trapezoidal-ribbed IMPs, and it comes in two sizes to fit popular rib profile dimensioning. When paired with S-5! ColorGard®, SnoBracket offers an ideal snow retention solution with durable, tested, watertight and proven products.
With no messy, field-applied sealants, there’s no chance for leaks. SnoBracket comes with factory-applied, butyl sealant already in the base. The part design conceals the sealant, preventing UV degradation and over-compression of the sealant when fasteners are secured.
SnoBracket has been rigorously tested parallel-to-seam (drag load) on multiple roofs and thicknesses.
Colorgard crossmember and color strip sold separately.
Attaches ColorGard® to 1.22" wide ribbed trapezoidal IMPs.
$21.53
Sold out

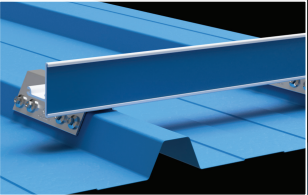

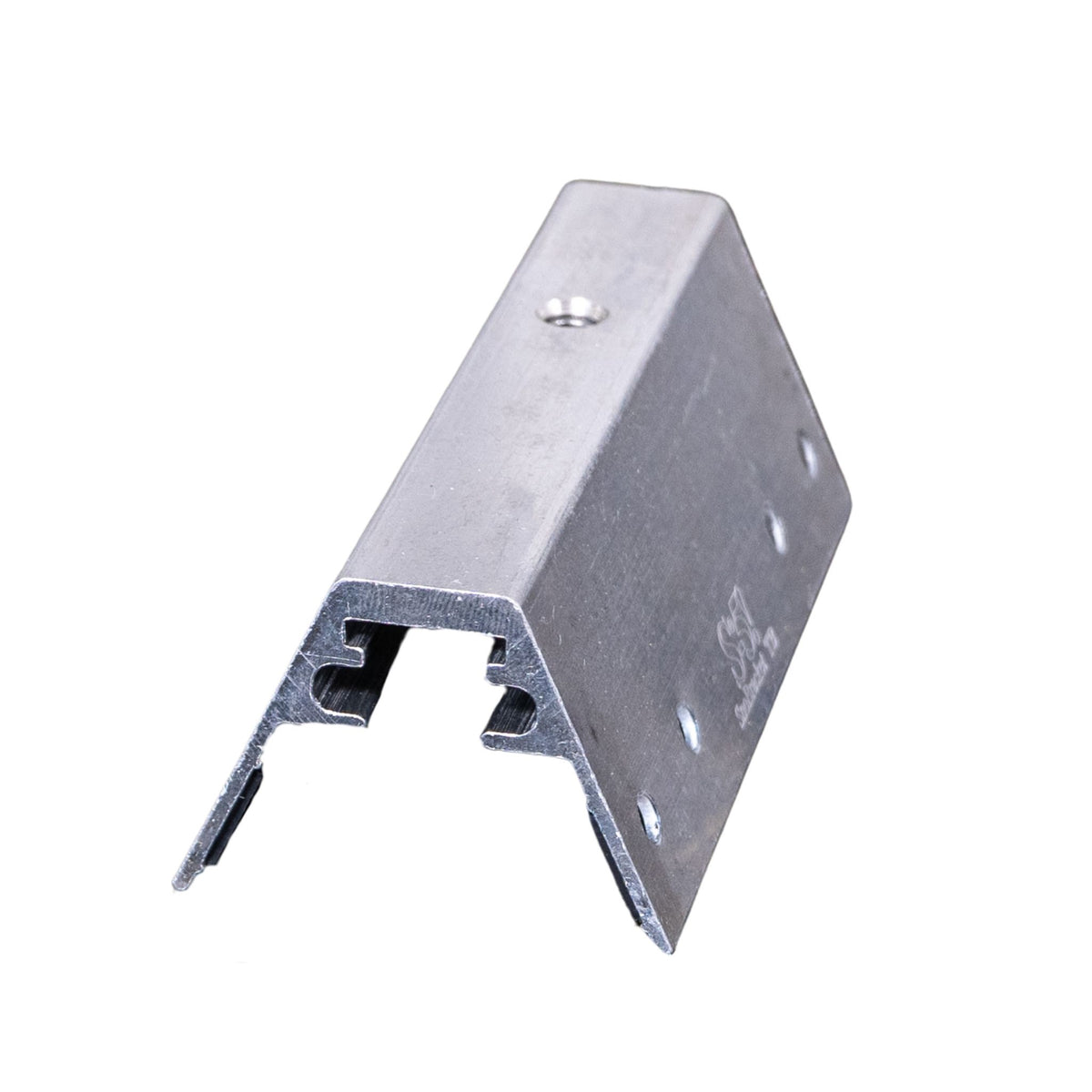

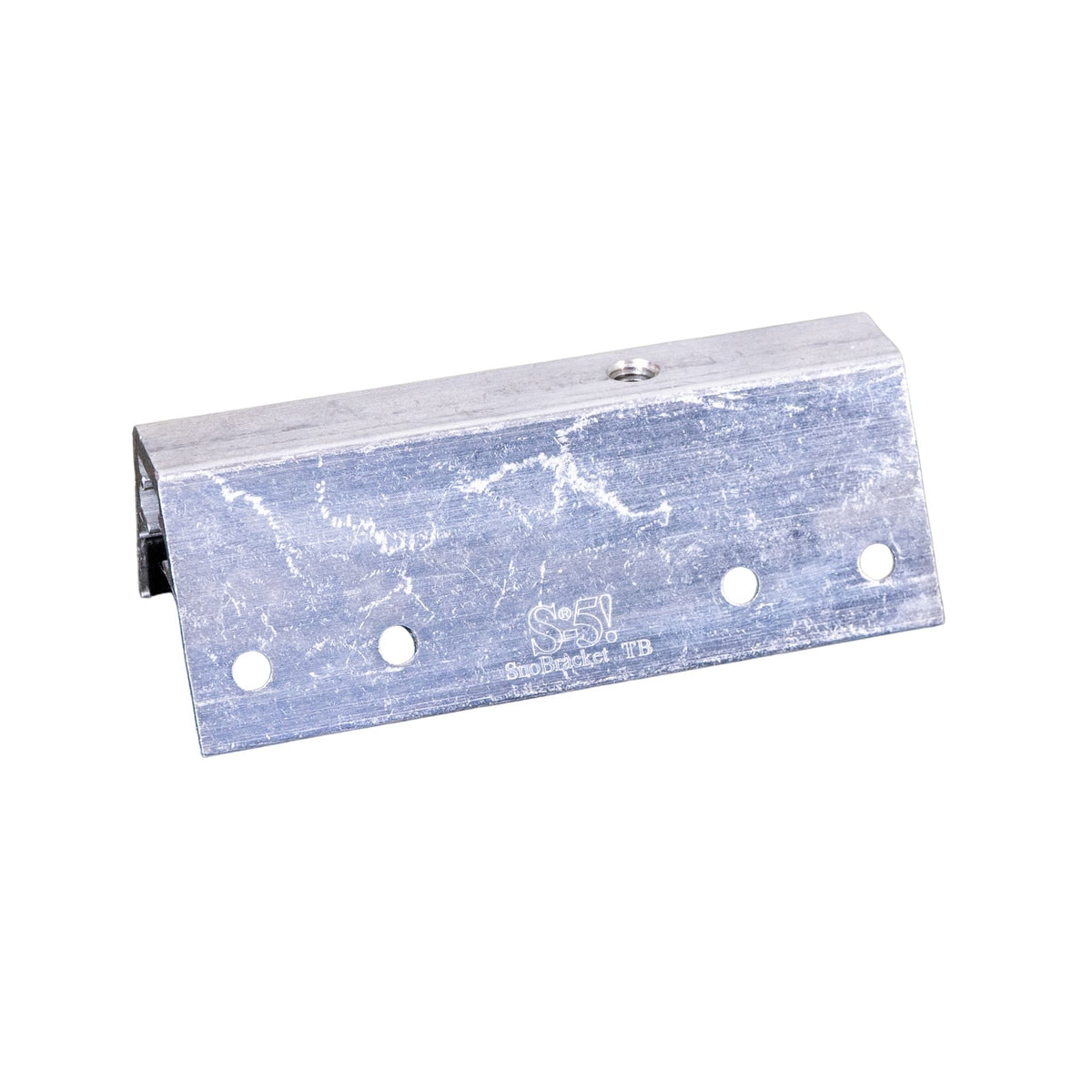

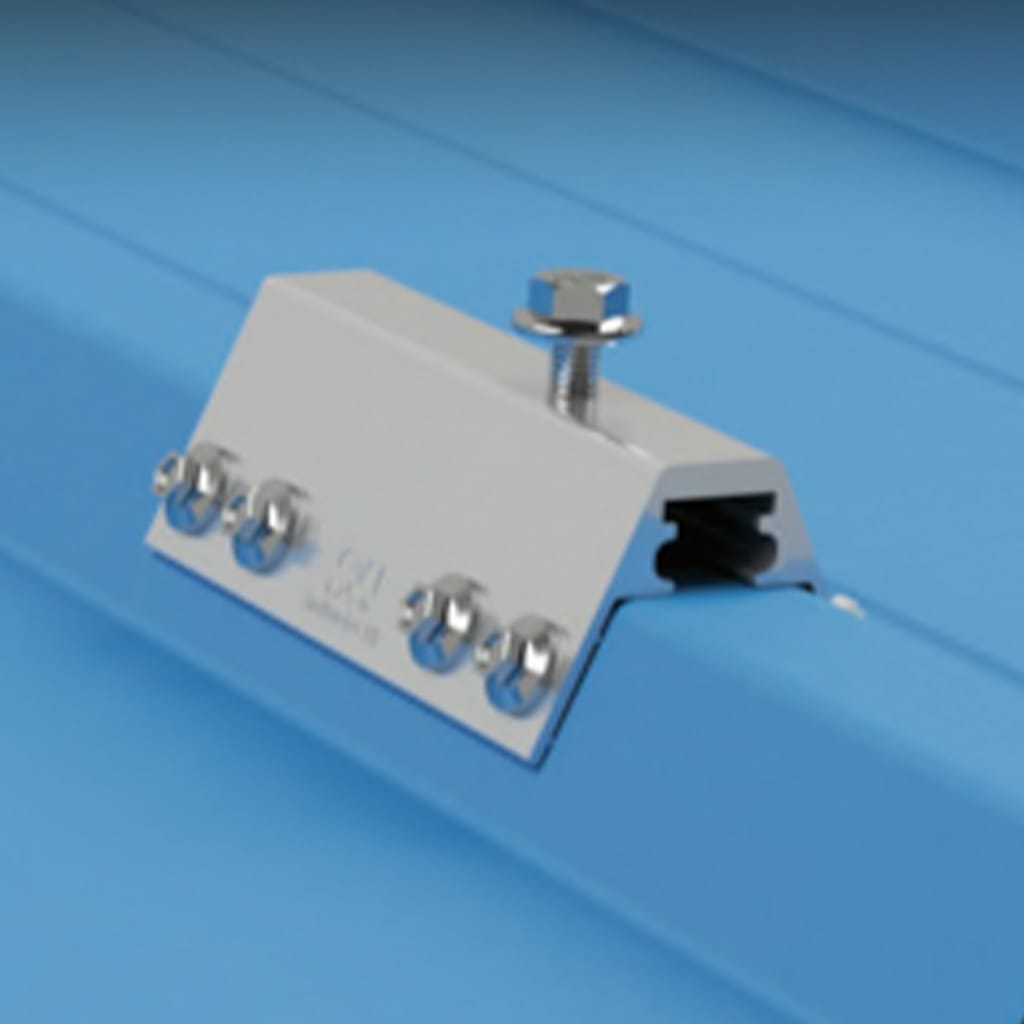

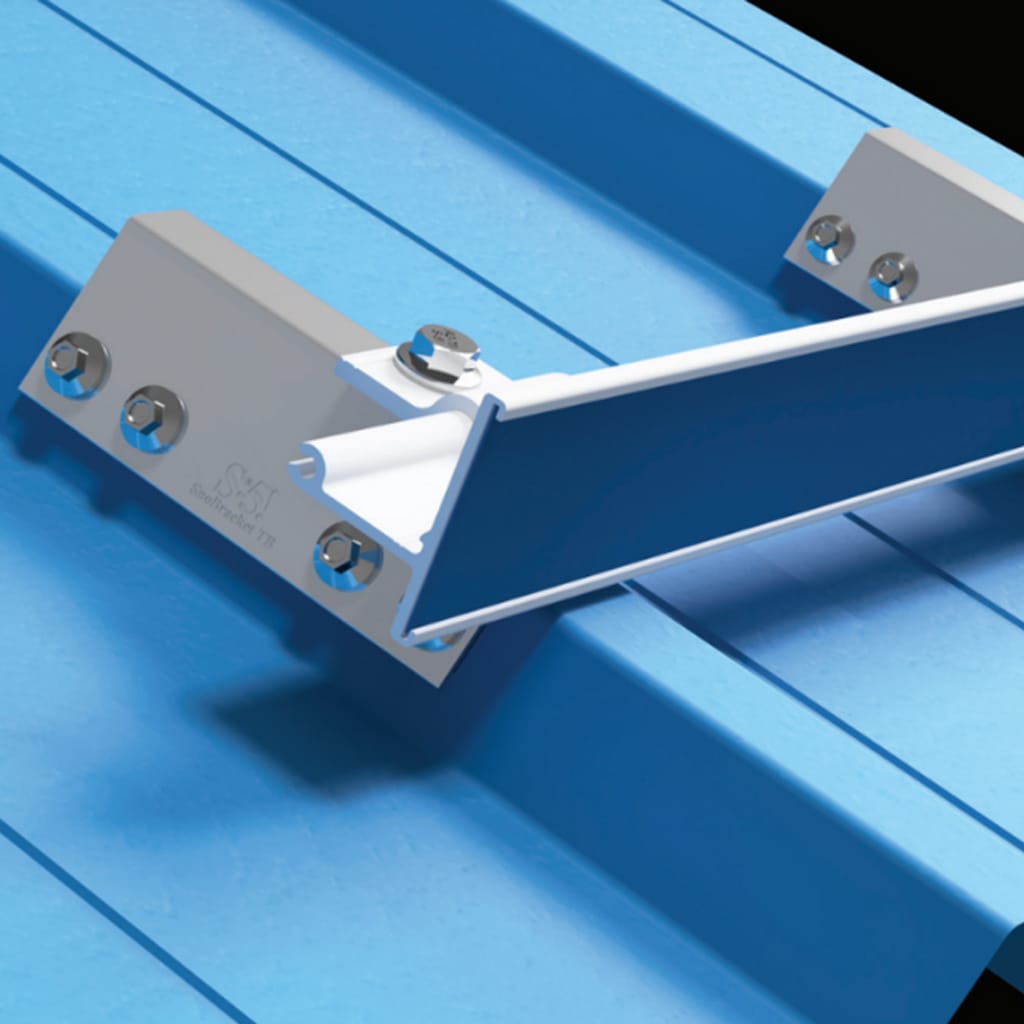

SnoBracket™ TB
Attaches ColorGard® to 1.22" wide ribbed trapezoidal IMPs.
Description
When mounting snow retention systems to your insulated metal panel (IMP) trapezoidal rib roof, you need attachments built to restrain potentially dangerous accumulated snowpack from avalanching and maintain your panels’ high insulating values without thermal bridging.
SnoBracket is a sheeting-only bracket created specifically for trapezoidal-ribbed IMPs, and it comes in two sizes to fit popular rib profile dimensioning. When paired with S-5! ColorGard® 2.0, SnoBracket offers an ideal snow retention solution with durable, tested, watertight and proven products.
SnoBracket™ protects your roof with factory-applied, premium, closed-cell EPDM rubber gaskets, creating a positive seal against water intrusion. With no messy, field-applied sealants, there’s no chance for leaks.
SnoBracket has been rigorously tested parallel-to-seam (drag load) on multiple roofs and thicknesses.
With no messy, field-applied sealants, there’s no chance for leaks. SnoBracket comes with factory-applied, butyl sealant already in the base. The part design conceals the sealant, preventing UV degradation and over-compression of the sealant when fasteners are secured.
SnoBracket has been rigorously tested parallel-to-seam (drag load) on multiple roofs and thicknesses.
Compatible with the Colorgard™ 2.0 snow retention system.
Pedestal for L-Foot attachment of rail-mounted solar PV.
$10.19
Sold out

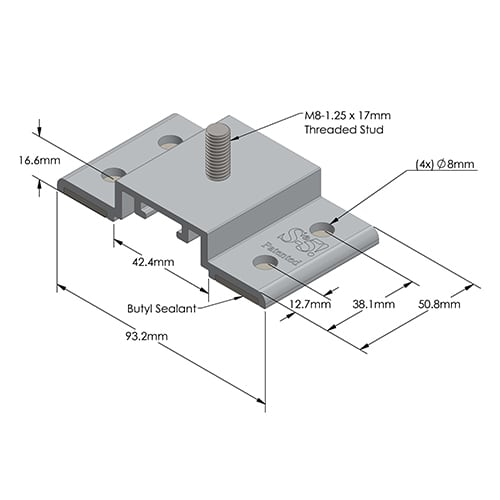

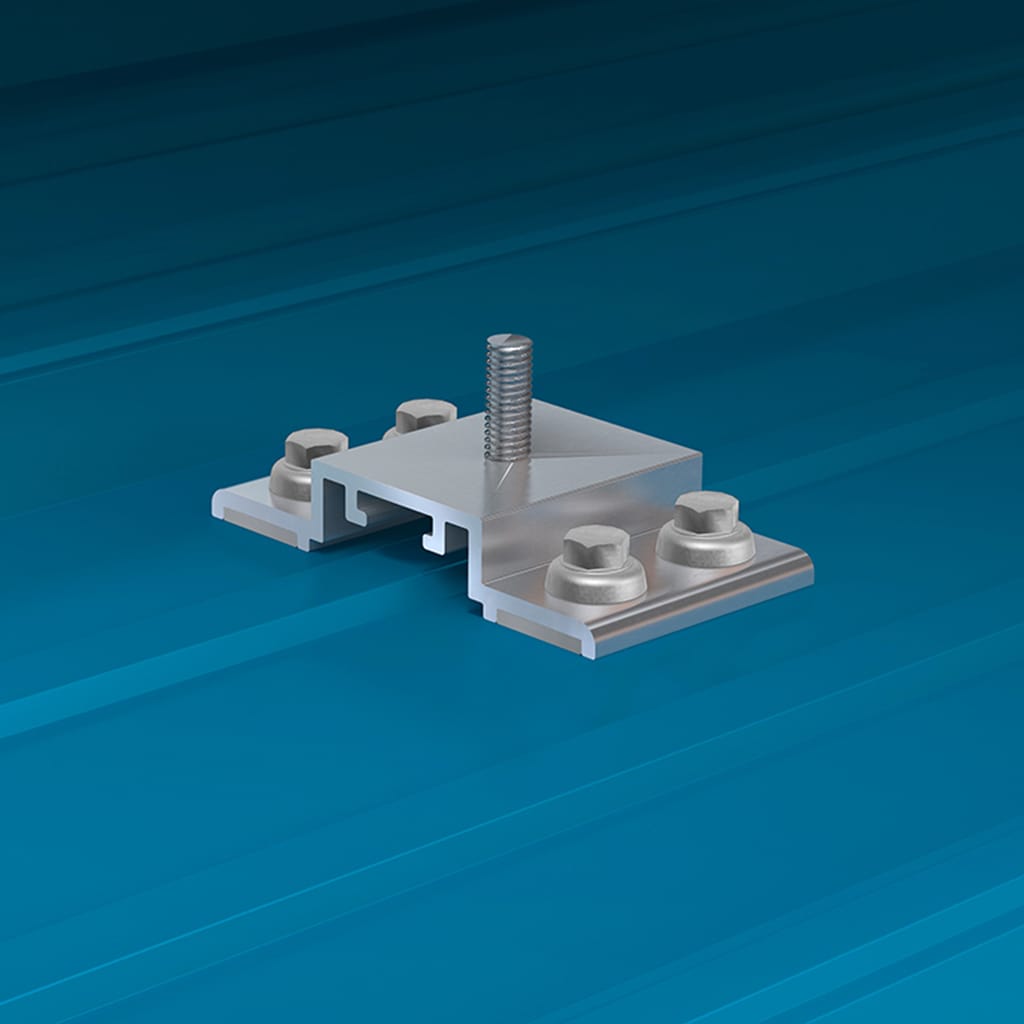

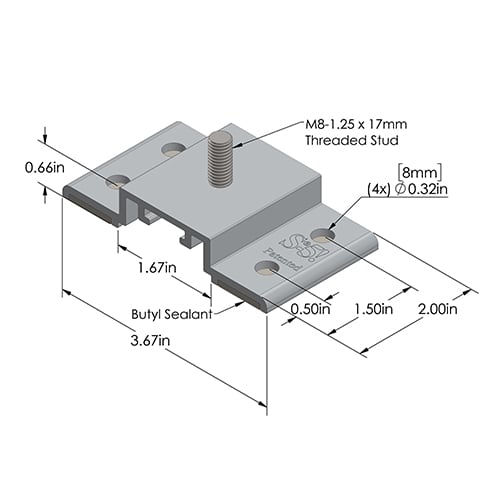

SolarFoot™
Pedestal for L-Foot attachment of rail-mounted solar PV.
Description
Introducing the new SolarFoot™ for exposed fastener metal roofing with the strength, testing, quality, and time-proven integrity you expect from S-5!.
View the installation instructions
The SolarFoot provides an ideal mounting platform to attach the L-Foot of a rail-mounted PV system to the roof. This solution is The Right Way to secure rail-mounted solar systems to exposed fastener metal such as AG-Panel or R-Panel.
SolarFoot Features:
- All aluminum and stainless components
- 25yr limited warranty
- Compatible with all commercial L-Foot products on the market
- Factory applied 40-year isobutylene/isoprene crosslink polymer sealant for reliable weathertightness
- Sealant reservoir to prevent over-compression of sealant
- Load tested normal to seam
- Four points of attachment into structure or deck with tested holding strength for engineered applications
- Integrated with M8-1.25x17mm stud and M8-1.25 stainless steel hex flange nut included
The SolarFoot is a simple, cost-effective pedestal for L-Foot (not included) attachment of rail-mounted solar PV. The unique design is compatible with all rail producer L-Foot components. The new SolarFoot assembly ensures a durable weathertight solution for the life of the roof. Special factory applied butyl co-polymeric sealant contained in a reservoir is The Right Way, allowing a water-tested seal. Stainless integrated stud and hex flange lock-nut secure the L-Foot into position. A low center of gravity reduces the moment arm commonly associated with L-Foot attachments. Direct attachment of the SolarFoot to the structural member or deck provides unparalleled holding strength.
Solar Foot Advantages:
- Exposed faster mounting platform for solar arrays attached via L-Foot and Rails
- Weatherproof attachment to exposed fastener roofing
- Butyl sealant reservoir provides long-term waterproof seal
- M8-1.25x17mm stud with M8 hex flange nut for attachment of all popular L-Foot/rail combinations
- Tool: 13 mm Hex Socket or ½”
- Hex Socket
- Tool Required: Electric screw gun with hex drive socket for self tapping screws
- Low Center of Gravity reduces moment arm commonly associated with L-Foot/Rail solar mounting scenarios
- Attaches directly to structure or deck for optimal holding strength
- S-5! Recommended substrate specific e.g. steel purlin, wood 2×4, osb, etc fasteners provide excellent waterproofing and pull out strength
- Fastener through-hole locations comply with NDS (National Design Specification)
*Fasteners sold separately. Fastener type varies with substrate. Contact S-5! on how to purchase fasteners and obtain our test results. L-Foot also sold separately.
Fastener Selection
Fastener selection will depend on whether the supporting structure of the roof is metal or wood.
When relying upon tested load values one of the below fasteners MUST be used. Sold Separately
47mm high, bottom-fixed bracket for trapezoidal rib.
$6.27
Sold out

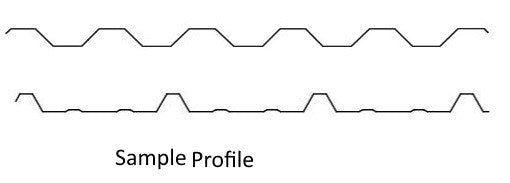

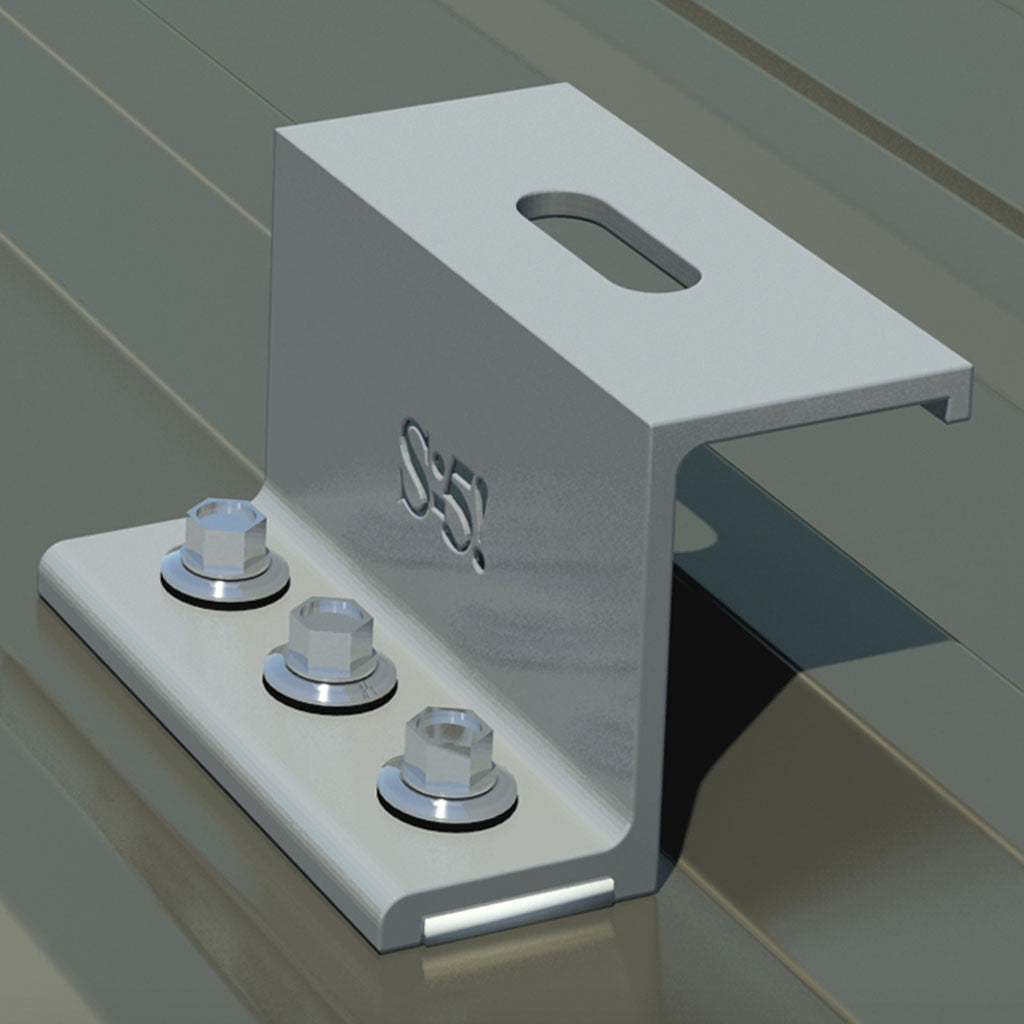

VersaBracket™ 47
47mm high, bottom-fixed bracket for trapezoidal rib.
Description
The S-5! Versabracket 47 is mounted in the flat of the panel, directly into the supporting structure of the roof, i.e., wood decking, wood or steel purlins, or trusses. No surface preparation is necessary; simply wipe away excess oil and debris, peel the release paper from the base, align and apply. Secure through the pre-punched holes using the appropriate screws (not included) for the supporting structure.
Fasteners not included.
67mm high, bottom-fixed bracket for trapezoidal rib.
$8.38
Sold out

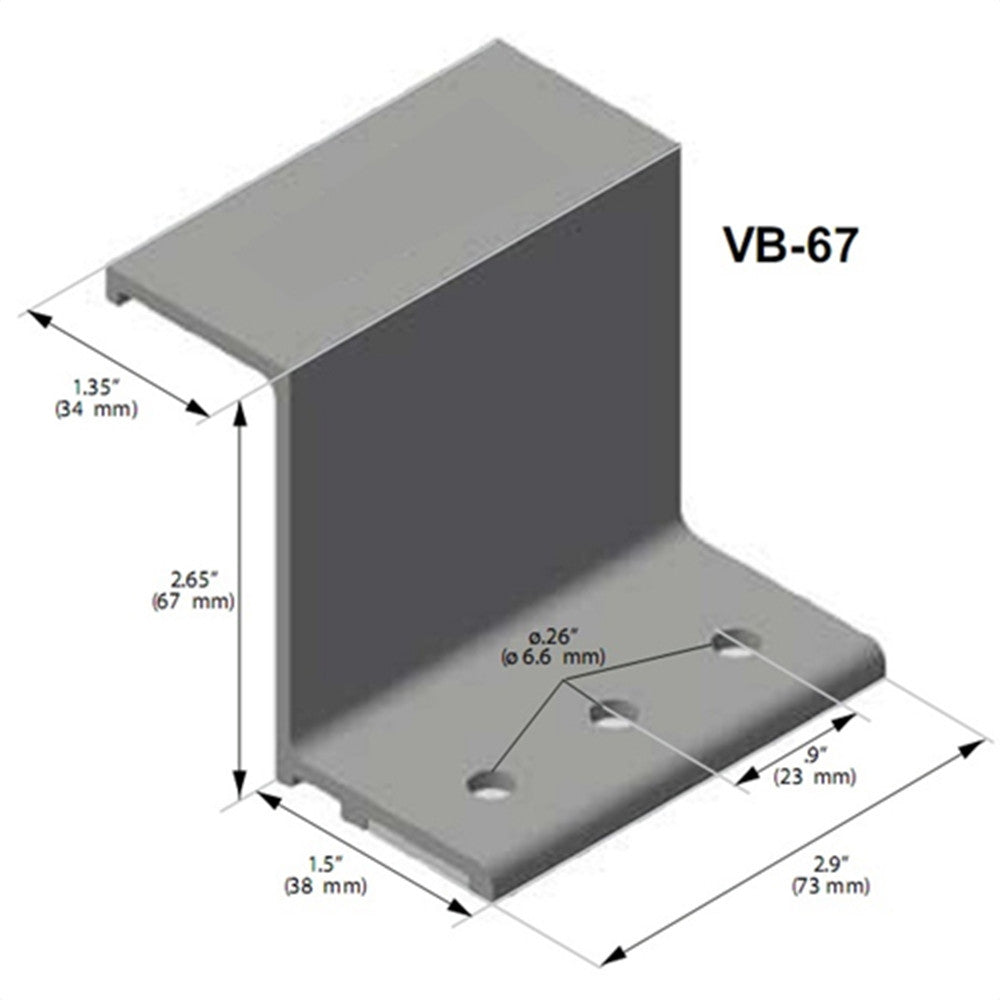

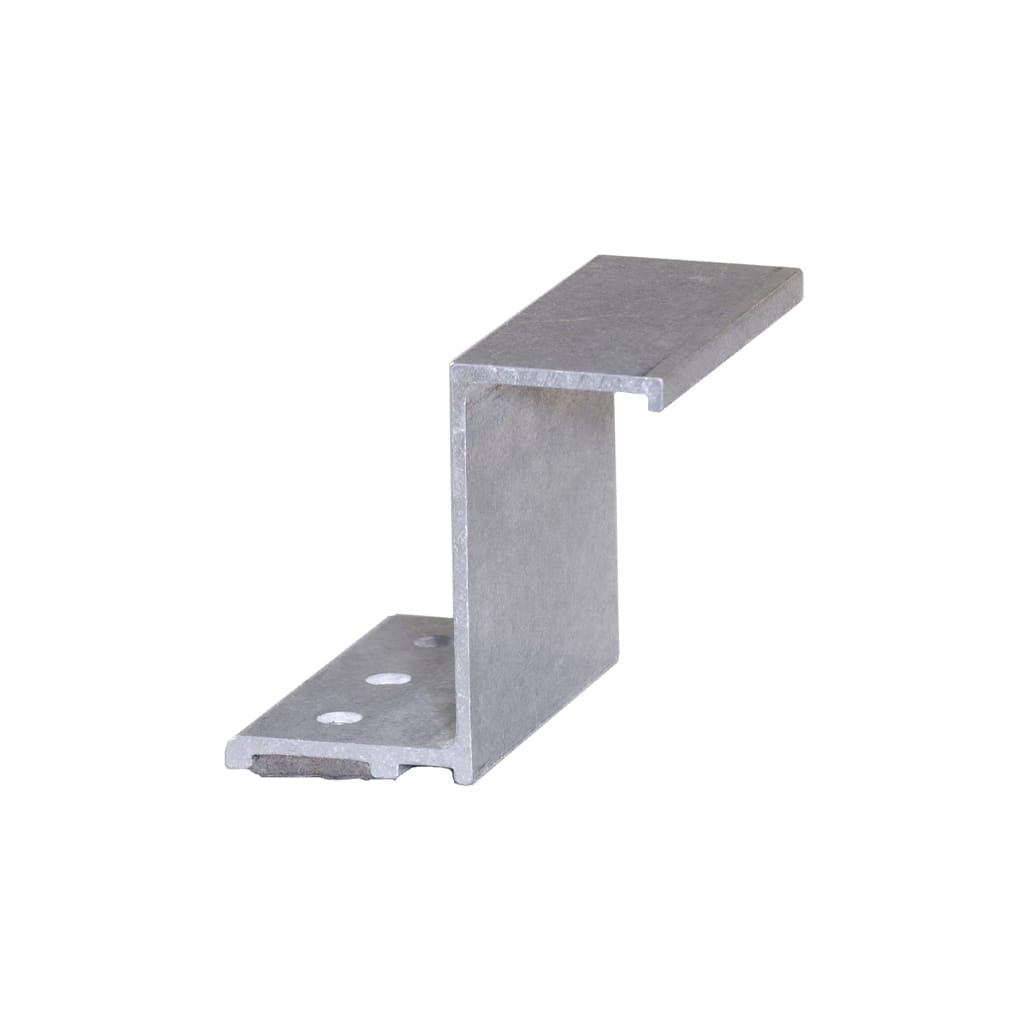

VersaBracket™ 67
67mm high, bottom-fixed bracket for trapezoidal rib.
Description
VersaBracket™ 67 can be used to mount almost anything to an exposed fastened roof system and is compatible with almost any trapezoidal, exposed-fastened profile. No messy sealants to apply! No chance for leaks! The VersaBracket 67 comes with factory-applied butyl sealant already in the base, and the patented reservoir conceals the sealant from UV exposure, preventing UV degradation.
Fasteners not included.
Direct-attach bracket for ribs up to 1.5".
$9.89
Sold out

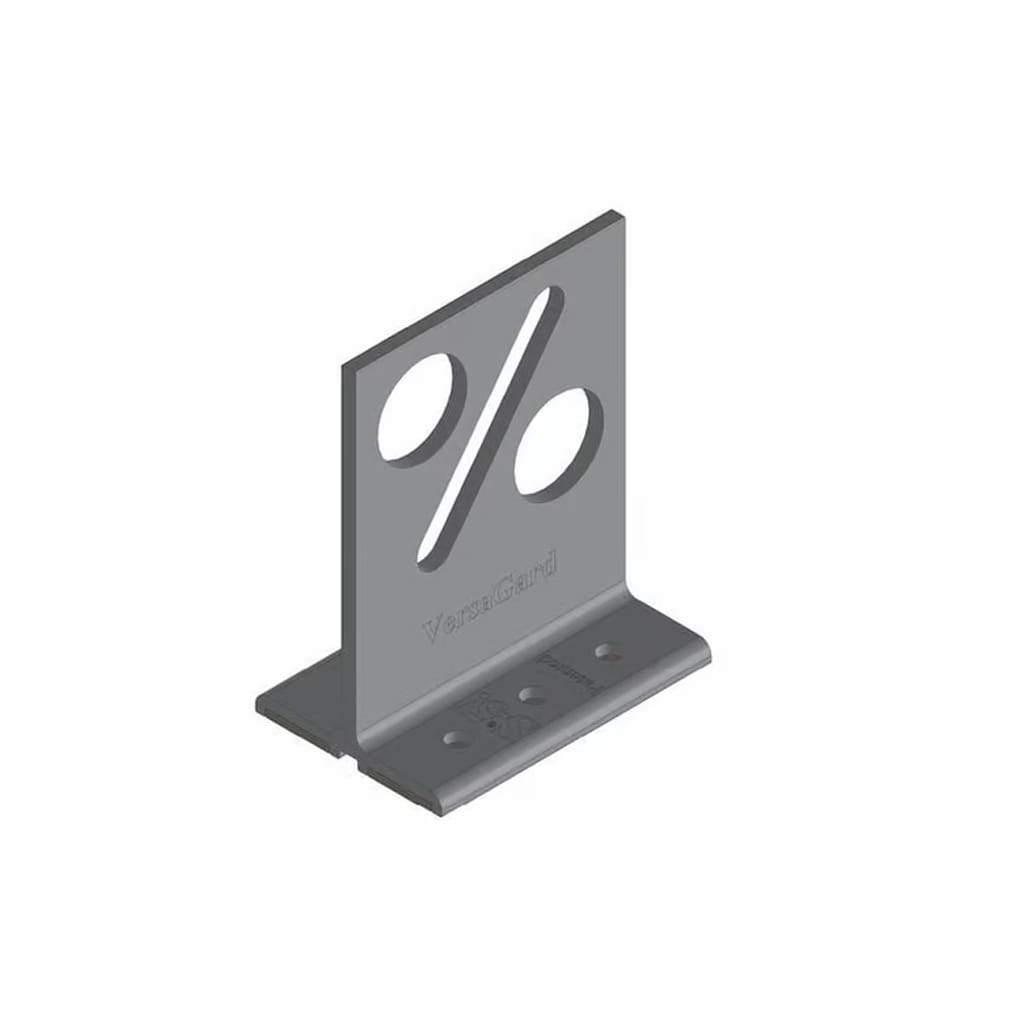

VersaGard™ Bracket
Direct-attach bracket for ribs up to 1.5".
Description

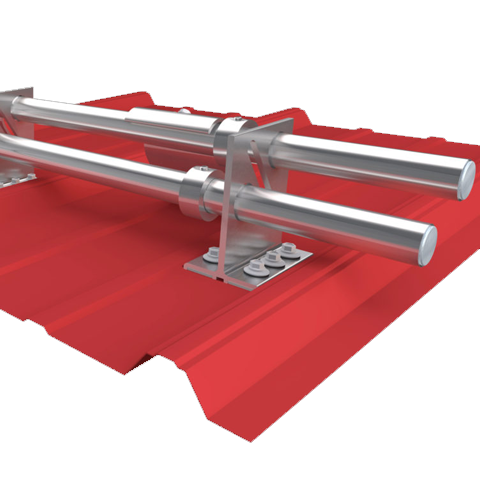

VersaGard snow retention systems are a versatile and economical 1-inch, two-pipe snow retention system designed to be attached to exposed-fastened or face-fastened metal roofs. VersaGard features a unique and “well” built into its base with a factory applied self adhesive butyl sealant for leak-free attachment that will not crack or split.
Direct-attach bracket for 1.5-2" ribs.
$9.89
Sold out
VersaGard™ V Bracket
Direct-attach bracket for 1.5-2" ribs.
Description
VersaGard snow retention systems are a versatile and economical 1-inch, two-pipe snow retention system designed to be attached to exposed-fastened or face-fastened metal roofs. VersaGard features a unique and “well” built into its base with a factory applied self adhesive butyl sealant for leak-free attachment that will not crack or split.
S-5!® Mounting Brackets for Exposed Fastener Metal Roofs
Securely mount rooftop ancillaries with our premium selection of S-5! Metal Roof Brackets. Specifically engineered for exposed-fastened, corrugated, and trapezoidal-rib profiles, these heavy-duty brackets deliver maximum holding power for solar modules, snow guards, HVAC units, and walkways. Crafted from corrosion-resistant materials, each pre-assembled bracket features factory-applied EPDM rubber gaskets to provide a leak-proof, weatherproof seal without the need for messy sealants.
Browse the industry-vetted line of S-5! brackets—including the popular ProteaBracket™, RibBracket™, and VersaBracket™ series—to find the perfect, high-load attachment solution for your commercial or residential metal roof.
