OMG PowerGrip Universal


Eliminate Solar Rack Ballast and Reduce Rooftop Material Handling

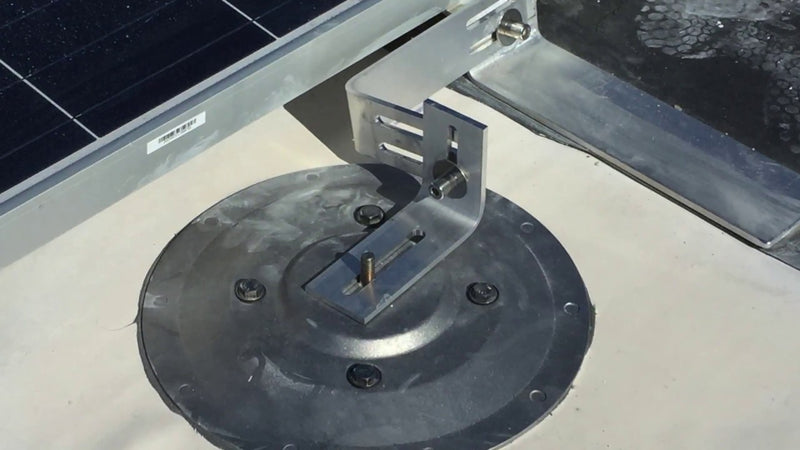

PowerGrip™ Universal (PGU) is a commercial roof mount system designed to secure solar racks and other equipment to any type of commercial roofing system. PGU provides a secure connection directly to the roof deck or structural members and is designed to reduce or eliminate ballast in solar racking systems, so there’s less weight on the roof and less material handling.

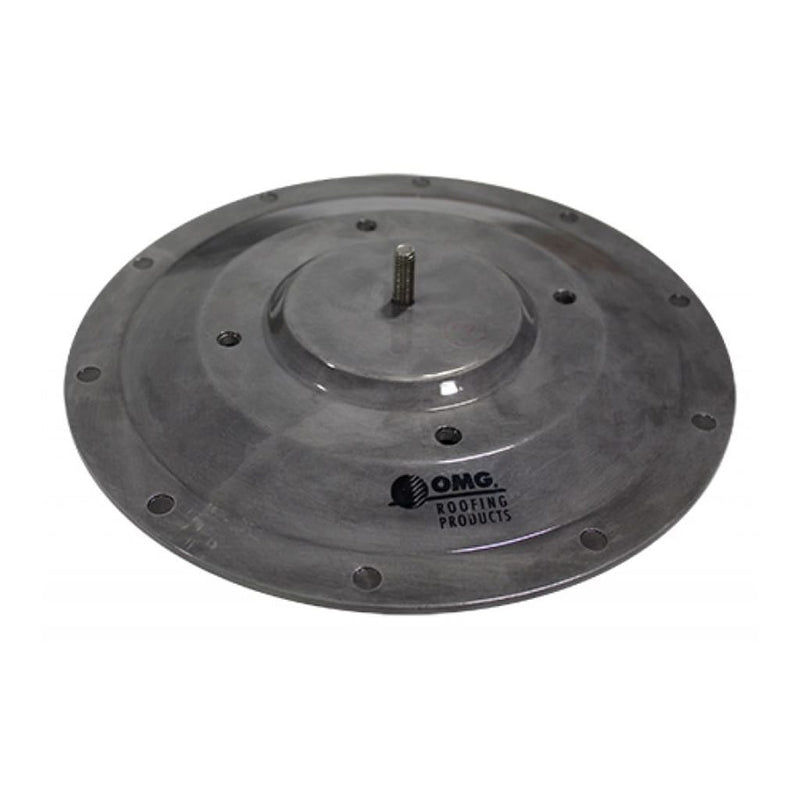

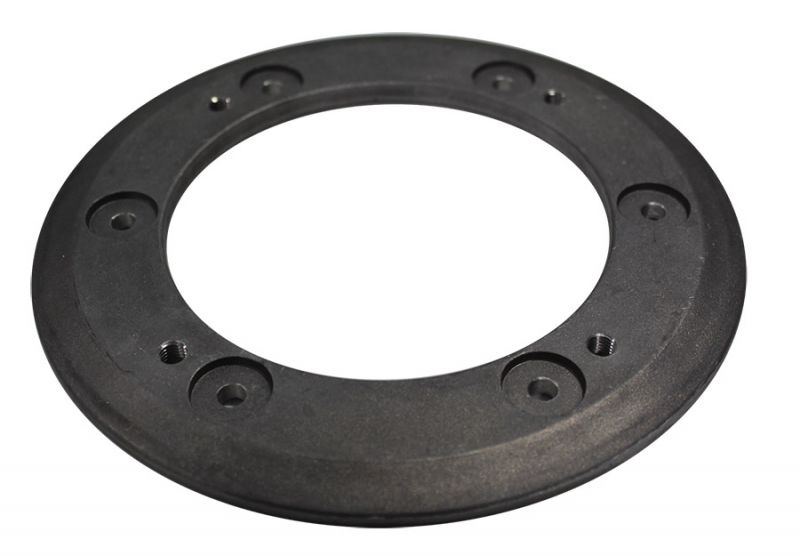

 Made of heavy-duty cast aluminum, PGU units include a base ring which is secured through the roofing cover and into the structural roof deck, and a waterproof top plate.

Features & Benefits

  • Properly installed PowerGrip Universal units provide a secure anchor to the roof deck and remain watertight.
  • PowerGrip Universal is compatible with every type of commercial roofing, and can be used on mechanically attached, fully adhered and ballasted roof systems.
  • Helps protect roof covers from damage due to ballasted rack movement.
  • 1-in. tall x 3/8-in. diameter stainless steel bolt and mounting stand provides flexible attachment options.
  • Each PowerGrip Universal can accommodate up to 2,000 lbs. of downward load.
  • PowerGrip Universal can also be used for a wide variety of other roof-top applications.

Installation Instructions

PowerGrip Brochure


Test Data

Mean Load

Static Tensile Load

TAS 117 (A)

3,300 lbf. (13.34 kN)

Static Shear Load

ASTM E-488

2,500 lbf. (11.12 kN)

Compressive Load

ASTM D-1621-10

2,000 lbf. (8.9 kN)
