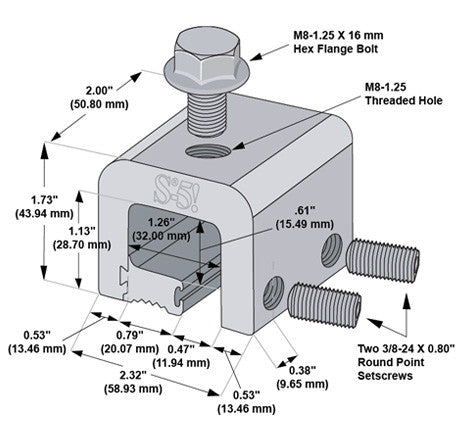

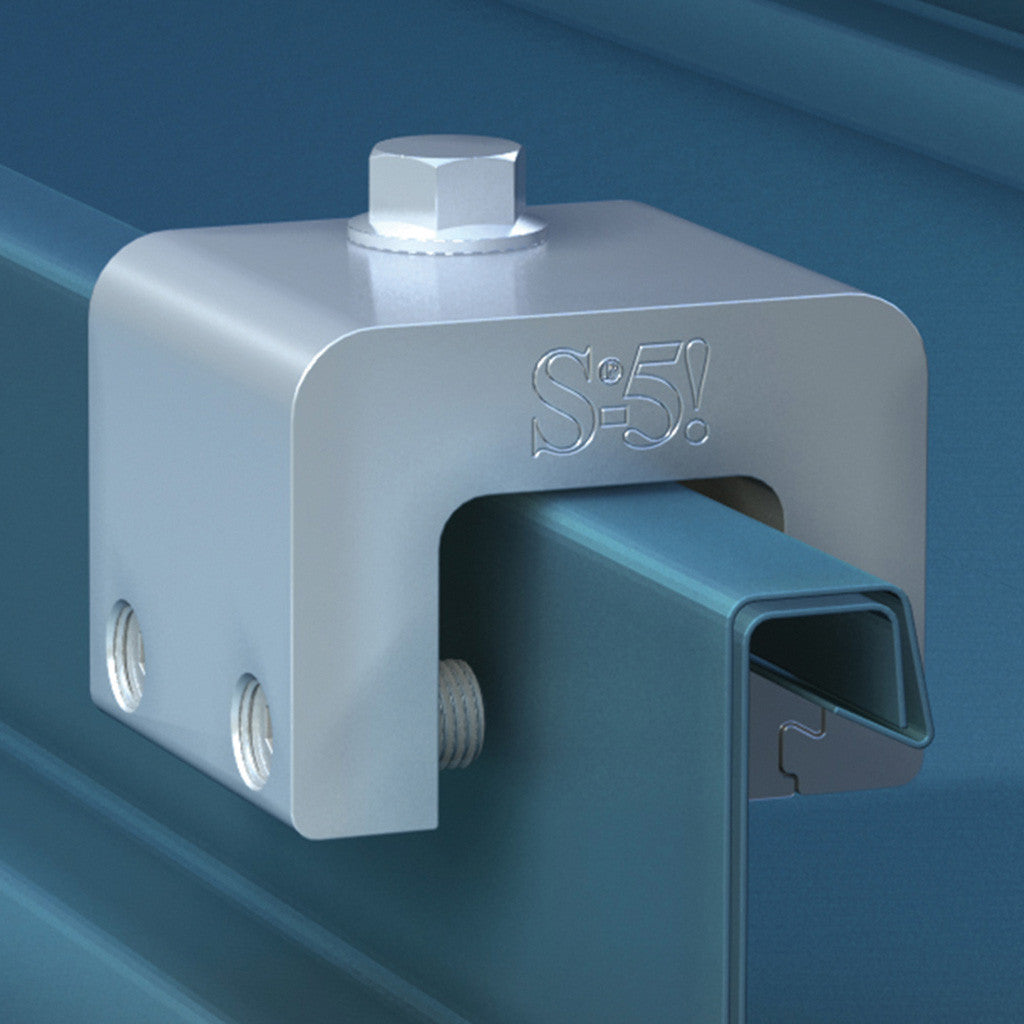

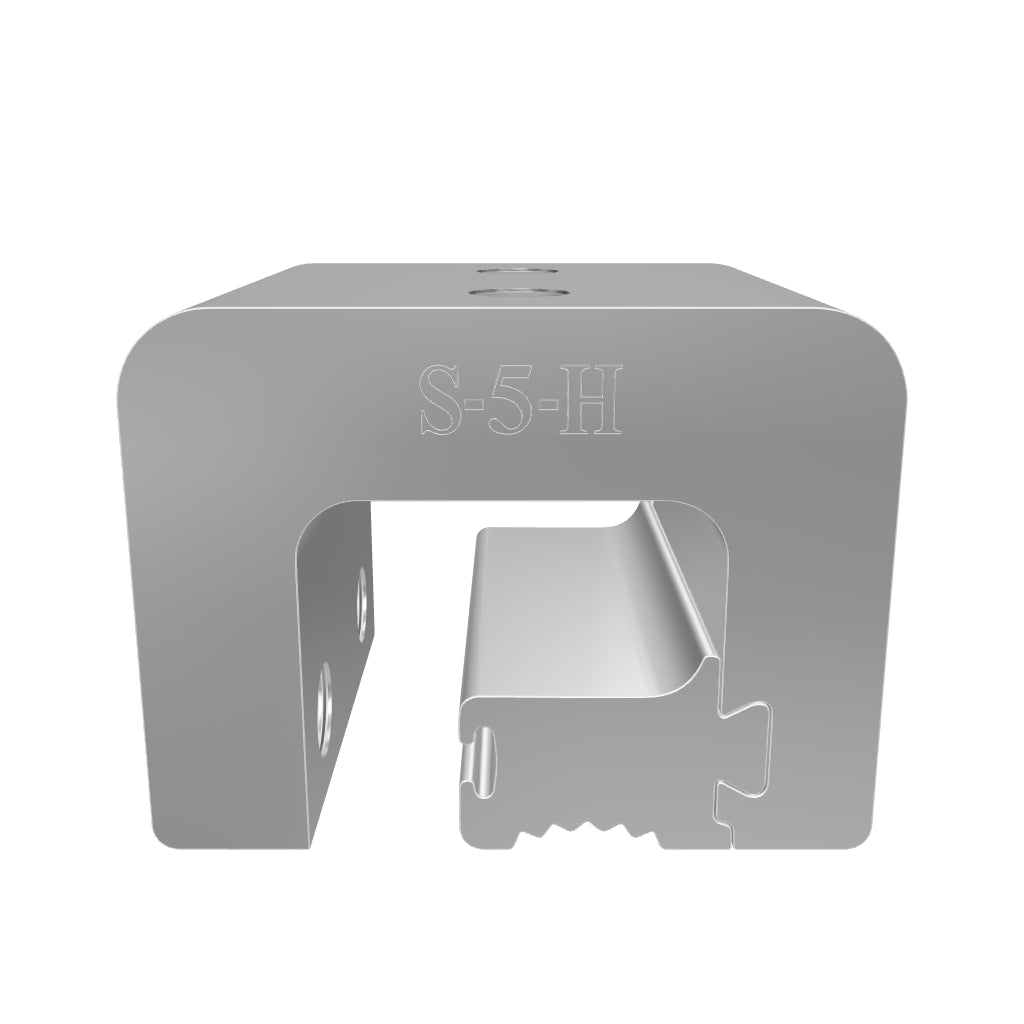

The S-5-H is a heavy-duty S-5! clamp for standing seam panels with a horizontal seam that isn't fully closed.

What it fits

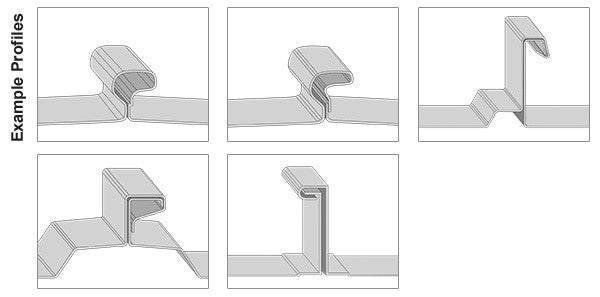

• Horizontal seams that are not fully closed, up to 0.75" wide
• A two-piece design that can be attached anywhere along the seam
• Side-install setscrews, rather than top-down

Best for

Mounting snow guards, solar arrays and rooftop utilities on standing seam metal roofs. It's a non-penetrating clamp, so the roof stays intact.

What's included

• M8 bolt x 1
• Setscrews x 2
• Setscrew bit tip for installation

Works with

ColorGard 2.0, X-Gard 1.0, X-Gard 2.0, SKP Snow Diverters, SKP Snow Guard, PVKIT.

Good to know

If your horizontal seam is fully closed, the S-5-H90 is the more economical choice. Need a smaller clamp for solar or DualGard? See the S-5-H Mini Seam Clamp.

Ships duty-free across Canada.
