S-5-U™ Seam Clamp

Universal clamp suitable for most standing seam profiles.

$17.31
$17.31

S-5-U™ Seam Clamp
Ships from Canada
Duty-free
S-5! Lifetime Warranty

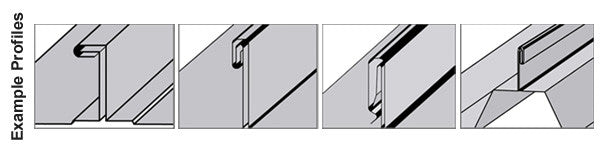

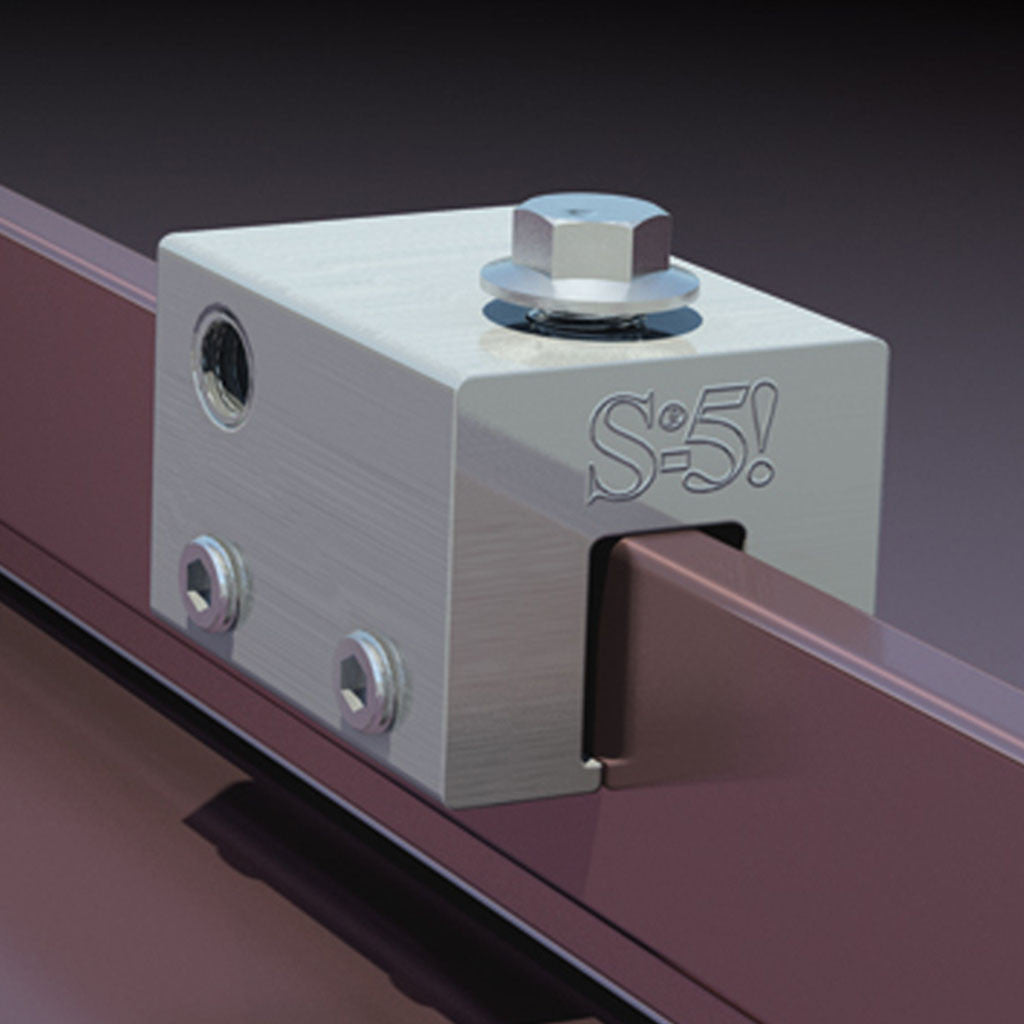

The S-5-U is our most popular S-5! seam clamp, and the universal one. It fits about 85% of the standing seam profiles made in North America, with no holes in the roof.

What it fits

  • Vertical standing seams, and it rotates 90 degrees to fit many horizontal seams
  • Most structural (metal building) profiles and most popular architectural profiles
  • Heavy-duty grip from two T-30 Torx round-point setscrews

Best for

Mounting snow guards, solar arrays and rooftop utilities on standing seam metal roofs. It's a non-penetrating clamp, so the roof stays intact.

What's included

  • M8 bolt x 1
  • Setscrews x 2
  • Setscrew bit tip for installation

Works with

ColorGard 2.0, X-Gard 1.0, X-Gard 2.0, SKP Snow Diverters, SKP Snow Guard, PVKIT.

Good to know

Installation is simple: place the clamp over the seam and tighten the setscrews. Need a smaller clamp for solar or DualGard? See the S-5-U Mini Seam Clamp.

Ships duty-free across Canada.
